Wet Glue Labeling Machine (for Round Bottle), TN-120A
Request a Quote
The wet glue labeling machine for round bottles automatically labels plastic, PET and glass bottles. Sensors detect when a bottle has no label and will not apply glue as well as when a bottle is out of place. This glue labeler is used in agrochemical, pharmaceutical, cosmetic, and food industries for bottling products. The bottle labeling machine is fast with a low error rate and can easily be adjusted to label large and small bottles.
Main performance parameters:
- Bottle Size: Φ30-95mm
- Speed: ≤100 bottles/min
- Labeling precision: ±1mm
- Label length: 50-280mm
- Label height: 40-150mm
- Power: ~380V, 50HZ
- Power: 1.2KW
- External dimensions: 2500 x 1000 x 1200(L x W x H)mm
- Weight: about 700Kg
- Pneumatic source: <0.5MPa clean and stable compressed air
Features:
1. Specially designed glue holder precisely applies glue.
2. Sensors detect which bottles have no labels.
3. An air outlet in the cabinet keeps the machine cool so it lasts longer.
4. Easy to adjust the bottle labeling machine for different sized bottles.
Labels are made of paper or labels are pre-cut.

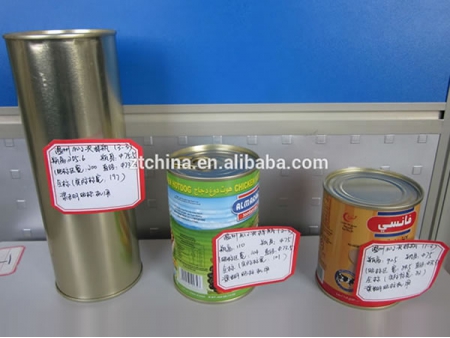

Suitable bottles:
Configuration
| No. | Name | Brand | Origin | Quantity |
| 1 | Motor | Dongli | Taiwan | 1 |
| 2 | SMPS | AIRTAC | Taiwan | 1 |
| 3 | Optical sensor button | SICK | German | 1 |
| 4 | Air switch | Autonics | German | 2 |
| 5 | Sensor button | TURCK | German | 1 |
| 6 | Power button | Ming wei | Taiwan | 1 |
| 7 | Frequency inverter | Panasonnic | Japan | 1 |
| 8 | Pneumatic cylinder | AIRTAC | Taiwan | 1 |
