Stage Lighting 40W RGBW LED Par Light Code SS355XCEM Stage Lighting
Request a Quote
Characteristics
- Master-slave control
- Buttons protection setting
- Support DMX512 control
- Multiple DMX control modes
- New innovational HSIC color mixing system
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 40W (RGBW)
- Optical angle: 3.5°-18°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 50W
- Drive current: 2.5A
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512, RDM
- Display: On board control, custom mode, 0-25Hz strobe
- Channel mode: HSIC/9CHS, SSP/9CHS, TOUR/12CHS, TR16/17CHS
- Appearance
- Size: 333x196x135mm
- Weight: 3.6kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: -20℃~45℃
- IP Rating: IP65
- Approvals
- Certification
- CE, MET

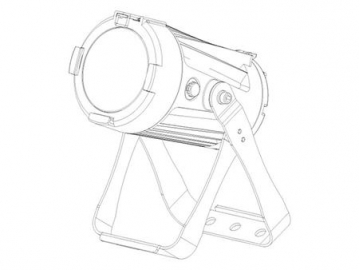

Dimensions
Illumination Contours

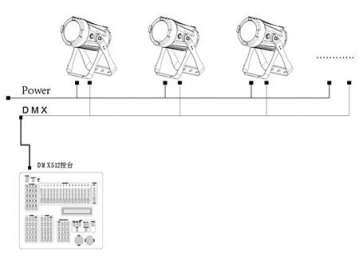

Installations
