Stage Lighting 40W RGBW LED Par Light Code SS358XCE/XCET Stage Lighting
Request a Quote
Characteristics
- 16Bit gray scale
- Master-slave control
- Support DMX512 control
- Multiple DMX control modes
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 14x5W (RGBW)
- Optical angle: 16°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 65W
- Drive current: 350mA
- Power line: power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system:Natural radiation
- RTCP: DMX512
- Display:On board control, custom mode, 0-25Hz strobe
- Channel mode: TOUR/9CHS, TR16/13CHS, AR1.D/4CHS, 8BIT/10CHS, 16BI/15CHS, SSP/6CHS, ARC.2/4CHS, AR2.D/5CHS, AR2.S/6CHS
- Appearance
- Size: 245x205x292mm
- Weight: 4.8kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature:-20℃~45℃
- Waterproof rate:SS338XCE-Dry Location, SS338XCET-Dry/Damp/Wet Location/IP66 (with LED dispaly cover installed)
- Approvals
- Certification
- CE, MET

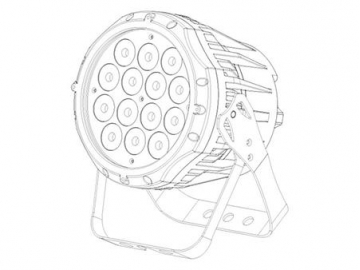

Dimensions
Illumination Contours
Installations
Optional Accessories
