Stage Lighting RGBW LED Par Can Light Code SS342XCET/XCE Stage Lighting
Request a Quote
Characteristics
- Master-slave control
- Buttons protection setting
- Support DMX512 control
- Multiple DMX control modes
- Linear dimming & nonlinear dimming
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 14x15W (RGBW)
- Optical angle: 8°-40°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 235W
- Drive current: 700mA/1000mA
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512, RDM
- Display: On board Control, 0-25Hz Strobe, Custom Mode
- Channel mode: TOUR/12CHS, ARC1/3CHS, AR1.D/4CHS, ARC.2/4CHS, AR2.D/5CHS, AR2.S/6CHS, HSV/3CHS, TR16/17CHS, AR2.Z/7CHS
- Appearance
- Size: 325x283x236mm(SS342XCET)
- 375x283x236mm(SS342XCE)
- Weight: 8.6kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: -20℃~45℃
- IP Rating: IP power socket, IP DMX XLR
- SS342XCET: Dry/Damp/Wet Location/IP66 (with LED dispaly cover installed)
- SS342XCE: IP20 Dry Location
- Approvals
- Certification
- CE, MET

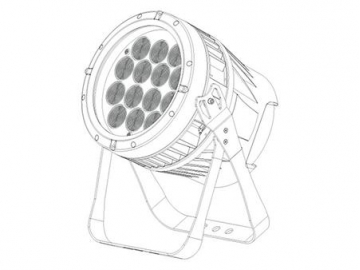

Dimensions
Illumination Contours

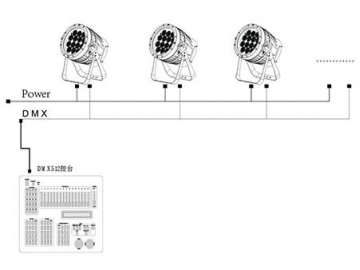

Installations
Optional Accessories
