Stage Lighting Waterproof LED Par Light Code SS345XCET/XCE Stage Lighting
Request a Quote
Characteristics
- Master-slave control
- Buttons protection setting
- Support DMX512 control
- Multiple DMX control modes
- Linear dimming & nonlinear dimming
Technical Specifications
- Optical System
- Light source: 7x15W (RGBW)
- Optical angle: 8°-40°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 128W
- Drive current: 950mA
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512
- Display: On board control, 0-25Hz strobe sustom mode
- Channel mode: TOUR/12CHS, ARC1/3CHS, AR1.D/4CHS, ARC.2/4CHS, AR2.D/5CHS, AR2.S/6CHS, HSV/3CHS, TR16/17CHS, AR2.Z/7CHS, FULL(25CHS)
- Appearance
- Size: 325x283x236mm(SS345XCET outdoor)
- 355x191x236mm(SS345XCE indoor)
- Weight: 6.6kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: -20℃~45℃
- IP Rating: SS345XCE-Dry Location, SS345XCET-Dry/Damp/Wet Location/IP66 (with LED dispaly cover installed)
- Approvals
- Certification
- CE, MET

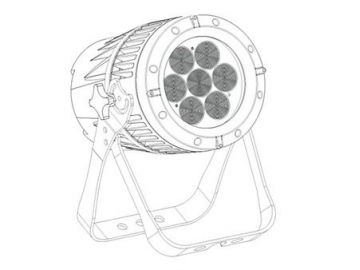

Dimensions
Illumination Contours

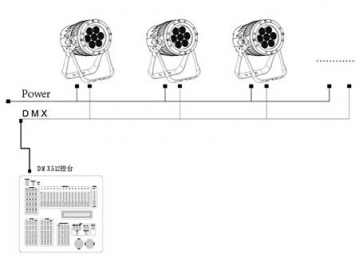

Installations
Optional Accessories
