Request a Quote

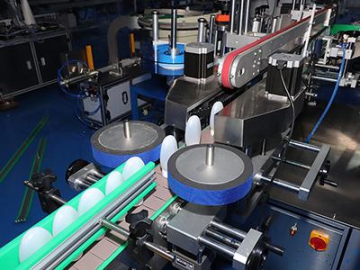

The side labeling machine is suitable for the application of labels to single sides of flat bottles, round bottles, and square bottles. It features a maximum production speed of 200 pcs/min.
Applications
  • Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
  • Applicable products: products with flat surfaces, large curved side surfaces, round surfaces, etc.
  • Applicable industries: pharmaceutical, cosmetics, electronics, hardware, plastic, etc.

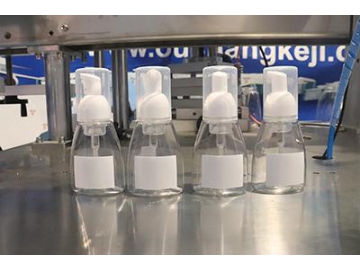

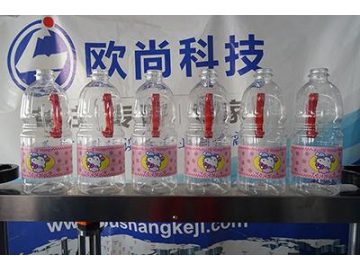

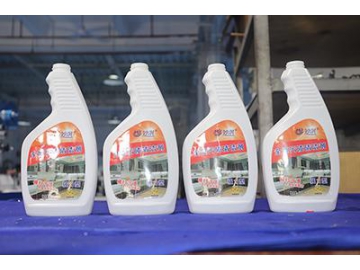

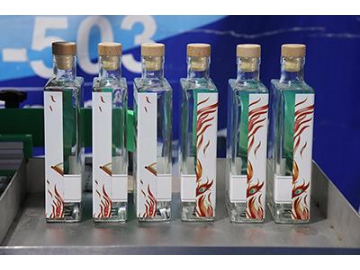

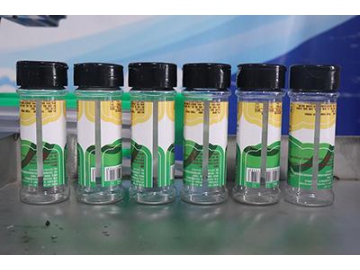

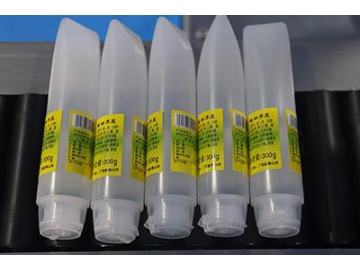

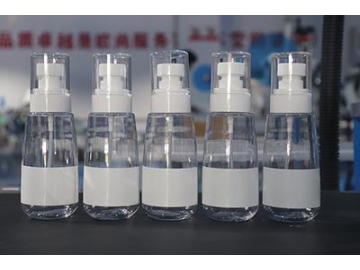

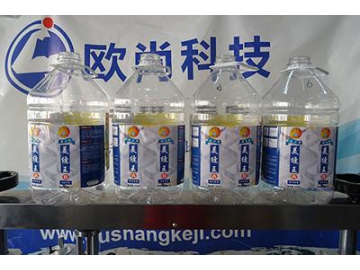

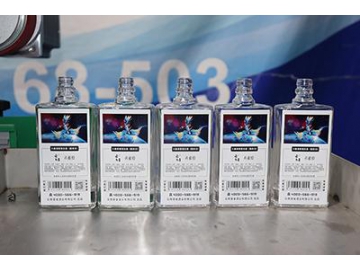

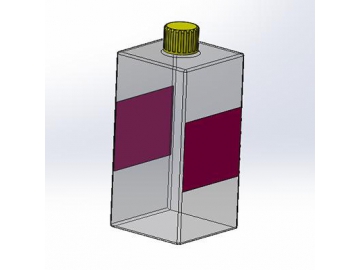

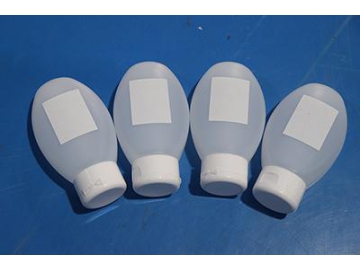

Samples
Specification
Model AS-S01
Label stop accuracy ±1mm
Production speed 30-200 pcs/min
Product diameter φ20mm~φ250mm
Product width 30mm~90mm
Product height 60mm~280mm
Label length 20mm~100mm
Label roll inside diameter Φ76mm
Label roll outside diameter Φ280mm
Dimensions (length x width x height) 3000mm x 1450mm x 1600mm
Weight 350Kg
Details of Automatic Single-Side Labeling System

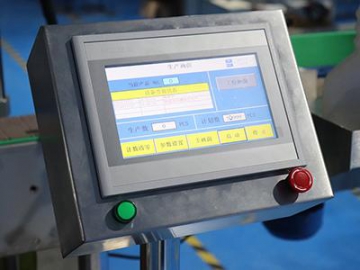

  • Touch screen:
    It is controlled by PLC. The interface is very convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters according to your product needs.
  • Guide mechanism:
    It is used to adjust the position of workpieces of various sizes using joints and bars.

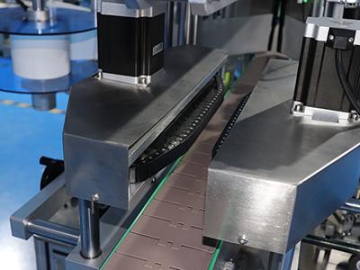

  • Bottle dividing mechanism:
    It controls the speed of the motor to create appropriate gaps among the bottles to ensure each bottle has sufficient time to be labelled.

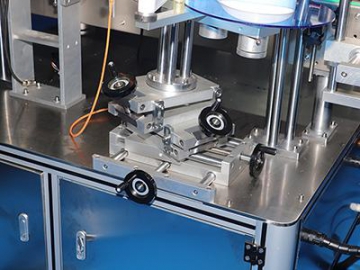

  • Label adjusting mechanism:
    Label position, height, and angle can be adjusted by the label adjusting mechanism. It enables the label to be applied to bottles with different shapes and sizes with great accuracy.
