The automatic labeling machine is designed for both single side labeling and double side labeling on flat bottles and square bottles. The equipment also supports wrap around labeling for round bottles. It features a maximum production speed of 200 pcs/min. The automatic loading system, automatic filling and capping system, automatic case packing system, and visual inspection system are optional.
Applications
  • Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
  • Applicable products: products with flat surfaces, large curved side surfaces, round surfaces, etc.
  • Applicable industries: cosmetics, daily chemical, electronics, pharmaceutical, hardware, plastic, etc.

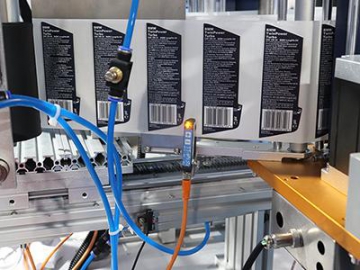

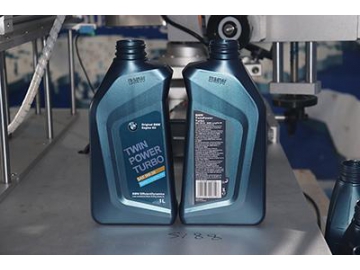

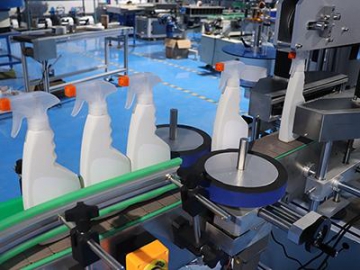

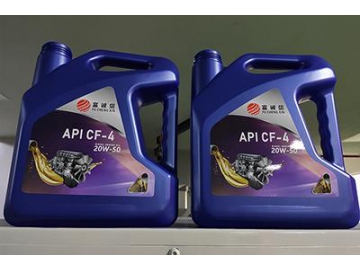

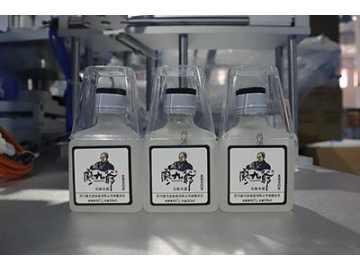

Samples
Specification
Model AS-S05
Label stop accuracy ±1mm
Production speed 60-200 pcs/min
Product length 20mm~250mm
Product width 30mm~90mm
Product height 60mm~280mm
Label length 6mm~250mm
Label roll inside diameter Φ76mm
Label roll outside diameter Φ280mm
Dimensions (length x width x height) 2800mm x 1450mm x 1600mm
Weight 400Kg
Details of Automatic Labeling System
  • Photoelectric sensor:
    The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability.

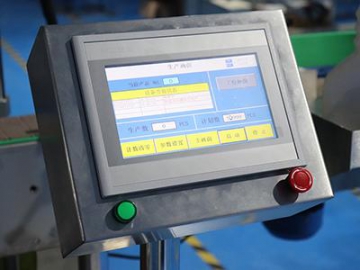

  • Touch screen:
    Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs.
  • Guide mechanism:
    It adjusts the positions of workpieces of various sizes using joints and bars.

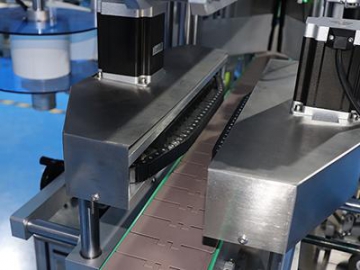

  • Bottle dividing mechanism:
    It controls the speed of the motor to form appropriate gaps among the bottles to ensure each bottle has sufficient time to be labelled.

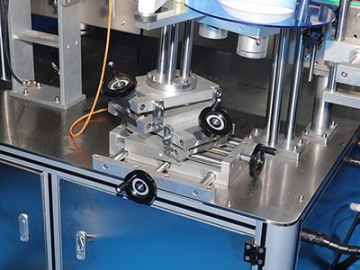

  • Label adjusting mechanism:
    Label position, height, and angle can be adjusted by the label adjusting mechanism. It enables the label to be applied to different shapes of bottles with high accuracy.
