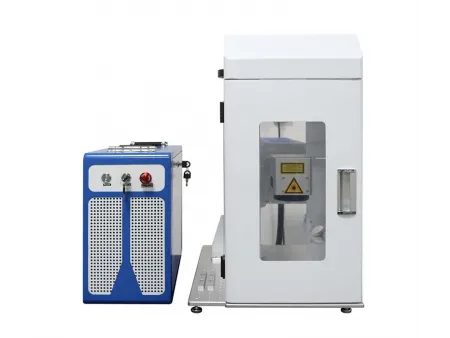

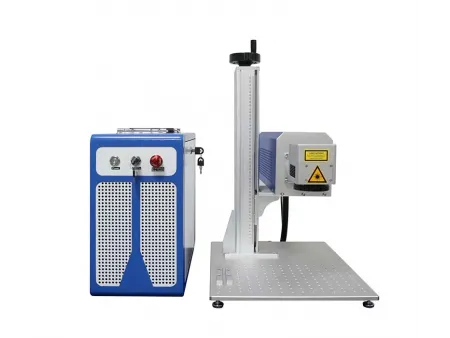

Split CO₂ Laser Marking Machine
- Laser wavelength 10.6μm
- Marking range 50×50mm~300×300mm
- Beam quality M²<1.5
- Machine weight 68kg
The CO₂ laser (wavelength 10.6μm) boasts extremely high absorption rates for non-metallic materials (such as plastic, wood, glass, ceramics, acrylic, leather, fabric, etc.), enabling non-contact, consumable-free permanent marking.
- Low energy consumption: The entire machine consumes only 500W, meaning just 0.5 kWh per hour. Calculated at an industrial electricity price of 0.8 RMB/kWh, the hourly cost is merely 0.4 RMB.
- Consumable-free & environmentally friendly: Requires no ink or chemical etchants, saving an estimated 50,000-100,000 RMB annually on consumables (based on 8 hours of daily operation).
- Ultra-long lifespan: Equipped with a high-quality RF laser tube, offering a lifespan of over 30,000 hours and supporting continuous 24/7 operation.
- Suitable for marking, cutting, and drilling various non-metallic materials, such as wood, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, stone, and more.

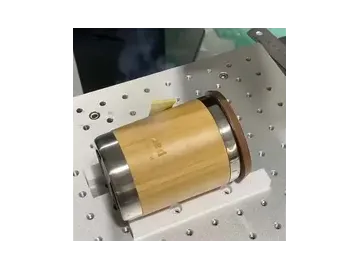

- Bamboo cup laser marking

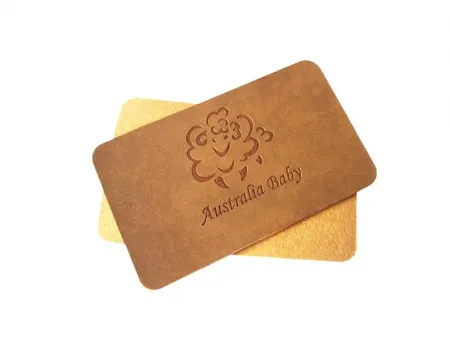

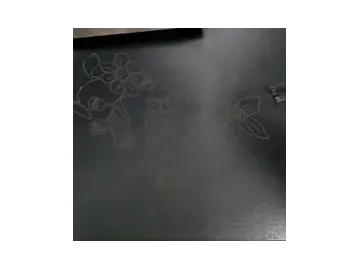

- Leather laser marking
- Shoe sole laser marking
- Wood laser marking
- PCB QR code laser marking
- Stainless steel tumbler laser marking
- Cuttable film laser engraving
- Leather notebook cover laser marking
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 30W
- Laser type CO₂ Laser
- Laser wavelength 10.6μm
- Marking range 50×50mm~300×300mm
- Beam quality M²<1.5
- Scanning speed F=160mm, ≤7000mm/s
- Pulse repetition frequency 0~25 kHz
- Min. line width 0.1mm (depending on material) @F=160mm
- Min. character height 0.6mm @ F=160mm
- Cooling method air cooling
- Power supply 1.5kW/AC220V/50Hz (Voltage fluctuation range ±5%; a voltage stabilizer is required if exceeding this range)
- Operating temperature & humidity 0℃~40℃, 30%≤RH≤85% (Operating outside this range may affect equipment performance and lifespan; consider installing air conditioning if used outside this range)
- Oil mist & condensation not allowed
- Machine dimensions 320×550×700mm (optical path section), 210×400×450mm (cabinet)
- Package size 830×440×1080mm
- Machine weight 68kg
- Package weight 78kg
RF CO₂ laser
Features high electro-optical conversion efficiency, requires virtually no maintenance, and is suitable for high-volume production needs; supports multiple wavelengths (e.g., 10.6μm, 9.3μm).
Galvo scanner
The galvo scanner boasts fast scanning speeds, reaching tens of thousands of scans per second; it features a sealed design for long lifespan and low maintenance costs. Electromagnetic or piezoelectric drive methods reduce mechanical wear, further enhancing the equipment's durability and reliability.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
Computer
Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.
Column
Supports various working area options (e.g., 110×110mm, 150×150mm, etc.), meeting diverse marking requirements. The Z-axis, through precise mechanical design and control systems, ensures accurate laser focus alignment at different heights for stable and reliable marking results.
Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fume Extractor
- 80mm rotary clamp fixture
- Roller rotary axis
- Rotary axis with tailstock
- CO₂ laser
- Split laser control cabinet
- Aluminum alloy work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Laptop
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
