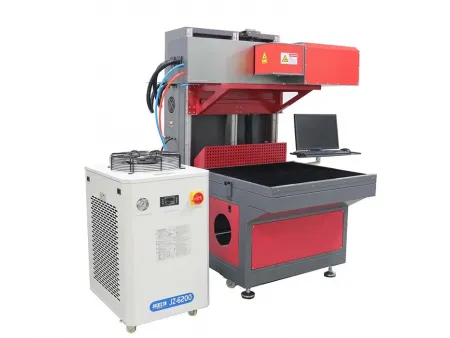

Dynamic CO₂ Laser Marking Machine
- Laser wavelength 10.6μm
- Marking range ≤600×600mm
- Beam quality M²<1.5
- Machine weight 440kg
The dynamic CO₂ laser marking machine features a compact, fully integrated design that reduces footprint by 40%. Its user-centric layout includes an adjustable-angle display for both seated and standing operation, minimizing neck strain. The built-in keyboard aligns flush with the machine’s frame to prevent accidental bumps, while tactile knobs and physical buttons retain the familiarity of traditional controls—ideal for new users. Equipped with universal casters and brake locks, the machine can be easily repositioned to adapt to production line adjustments.
- Suitable for marking, cutting, and drilling various non-metallic materials, such as wood, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, stone, and more.

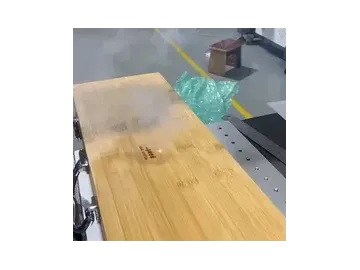

- Bamboo case laser marking

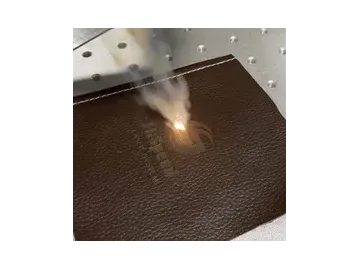

- Leather laser marking
- Wooden craft laser marking
- Shoe sole laser marking
- PCB QR code laser marking
- Cuttable film laser engraving
- Stainless steel tumbler laser marking
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 100W, 250W, 350W
- Laser type CO₂ Laser
- Laser wavelength 10.6μm
- Marking range ≤600×600mm
- Beam quality M²<1.5
- Scanning speed ≤7000mm/s
- Pulse repetition frequency 0~25 kHz
- Min. line width 0.1mm (depending on material)
- Min. character height 0.6mm
- Cooling method water cooling
- Power supply 1.5kW/AC220V/50Hz (Voltage fluctuation range ±5%; a voltage stabilizer is required if exceeding this range)
- Operating temperature & humidity 0℃~40℃, 30%≤RH≤85% (Operating outside this range may affect equipment performance and lifespan; consider installing air conditioning if used outside this range)
- Oil mist & condensation not allowed
- Machine dimensions 1280×1550×1660mm (chiller 480×610×800mm)
- Package size 1710×1310×1800mm
- Machine weight 440kg
- Package weight 485kg
- 100W laser powerWorking area ≤400×400mm for surface marking on non-metal materials or micro-engraving on wooden products.
- 250W laser powerWorking area ≤600×600mm for cutting paperboard, vinyl lettering film, or fabric.
- 350W laser powerWorking area ≤600×600mm for cutting tougher materials such as shell.
RF CO₂ laser
Utilizes an industry-renowned imported coherent laser source, known for its high electro-optical conversion efficiency and excellent performance. It requires virtually no maintenance, is suitable for high-volume production needs, and supports 24-hour continuous operation without malfunction.
2.5D Galvo scanner
Employs dynamic focusing technology, integrating an electrically adjustable lens to quickly adjust the laser focal position without relying on mechanical moving parts, achieving a Z-axis working range of up to 100mm.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
Computer
Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.
Z-axis lifting platform
Features a dual-rail design, fixed with screw spacing to ensure the platform remains horizontally stable during lifting and lowering, preventing tilting or wobbling. Paired with wear-resistant copper nuts, it enhances transmission precision and lifespan, reducing mechanical wear. Some high-end models may combine electrically adjustable focusing lenses with the galvo system to achieve Z-axis dynamic focusing, replacing traditional mechanical lifting and expanding the focusing range (e.g., ±21mm).
Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fume Extractor
- 80mm rotary clamp fixture
- Roller rotary axis
- Rotary axis with tailstock

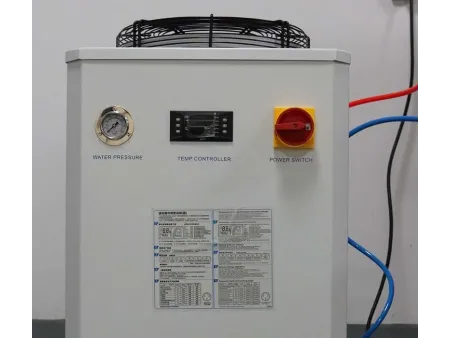

Water Chiller
- CO₂ laser
- Laser control cabinet

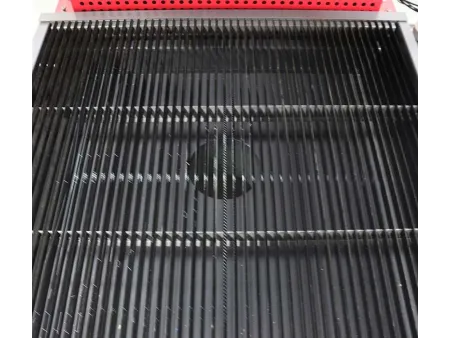

- Honeycomb panel workbench
- 2.5D dynamic focusing galvo scanner head
- F-theta lens
- Control card
- Laser power supply
- Computer
- Power cord
- Water chiller
- Safety goggles
- Foot pedal switch
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
