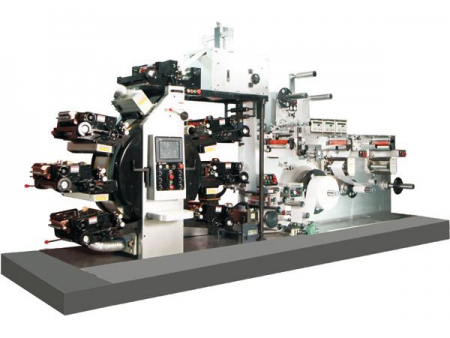

In-Line Flexographic Printing Machine for Paper and Cardboard Printing

  • Printing repeat: 292.1 -650mm/292.1-1019mm
  • Max. unwind diameter: 60" (1524mm)
  • Max. rewind diameter: 60" (1524mm)
  • Max. mechanical speed: 200m/min (650fpm)
  • Substrate: 30-100gsm/80-250gsm/100-350gsm

Our SC series in-line flexo printing press is built for handling jobs of food & beverage packaging printing, paper cup printing, paper bag printing, pharmaceutical box printing, etc. It is offered with a printing width range of 830-1450mm, two repeat length ranges of 292.1-650mm and 292.1-1019mm. With its features of precise pressure adjustment and excellent dot gain level, the flexo printing machine can deliver high quality printing for various types of paper substrates.

Printing Examples

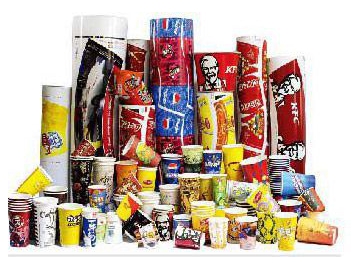

Printed Ice Cream Paper Cones & Paper Food Packaging Containers

Applications

  • Food & Beverage Packaging Printing
  • Paper Cup Printing
  • Paper Bag Printing
  • Pharmaceutical Box Printing

Features

  • Printing up to 14 colors, can meet various printing applications needs;
  • The thickness range of paper applied for printing can be between 40gsm and 350gsm;
  • Servo-driven motion technology increases machine stability and eliminates the possibility of vibration and friction that usually happen in gear transmission;
  • Machine body is constructed by casting process, providing increased durability;
  • Fully automatic web guiding helps automatic guiding of a continuous web;
  • The design of pull-out cassettes enables printing unit parts to be rapidly installed and replaced;
  • High speed drying unit offers options of IR drying and hot air drying;
  • Precise register in both longitudinal and transverse directions solves the needs of high quality printing;
  • Stable and precise tension control system;
  • Stroboscopic inspection system is adopted as standard configuration for real-time inspection of printing color and register results;
  • Control console is easy to use;
  • Unlimited expansion possibilities, this flexo printing machine can be placed in-line with various kinds of converting equipment;

Details

Model Options

EKOFA SC 830
    1. Max. web width
      34.25" (870mm)
    1. Max. printing width
      32.68" (830mm)
EKOFA SC 920
    1. Max. web width
      37" (940mm)
    1. Max. printing width
      35.43" (900mm)
EKOFA SC 1000
    1. Max. web width
      40.15" (1020mm)
    1. Max. printing width
      38.58" (980mm)
EKOFA SC 1100
    1. Max. web width
      44.88" (1140mm)
    1. Max. printing width
      42.52" (1080mm)
EKOFA SC 1300
    1. Max. web width
      51.57" (1310mm)
    1. Max. printing width
      49.21" (1250mm)
EKOFA SC 1450
    1. Max. web width
      57.87" (1470mm)
    1. Max. printing width
      55.51" (1410mm)
