Tandem Vibratory Hammer

L Series

Crane suspended vibratory hammer for pile driving or extracting

Our tandem series of vibratory hammers presents vibration equipment with innovative design, featuring our unique tandem system. These hammer products utilize a tandem platform and connection components to simultaneously operate multiple hammers, significantly enhancing centrifugal force and impact. Tandem series is ideal for dense soil and projects requiring large diameters, with maximum centrifugal force ranging from 6000kN to 51600kN. Customization is available to meet your specific requirements. Choose our tandem series for unparalleled performance and efficiency in your piling projects.

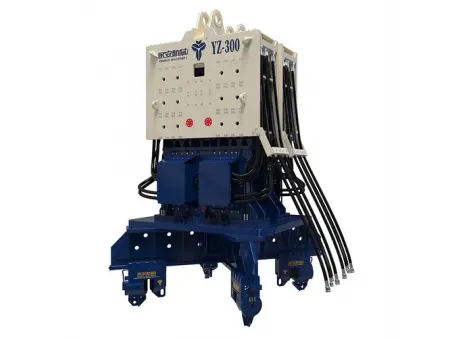

Model	YZ-300X2
Unit	Metric	US
Eccentric Moment	274 kg.m	23780 lbs.in
Maximum Frequency	1410 rpm	1410 rpm
Maximum Centrifugal Force	6000 kN	673 tons
Maximum Line Pull Force	4000 kN	449 tons
Maximum Amplitude	37 mm	1.45 in
Maximum Oil Flow	2030 L/min	536 gpm
Weight (without clamps and beam)	32000 kg	70400 lbs
Dimensions (L×W×H)	2650×2670×4270 mm	104×105×167 in

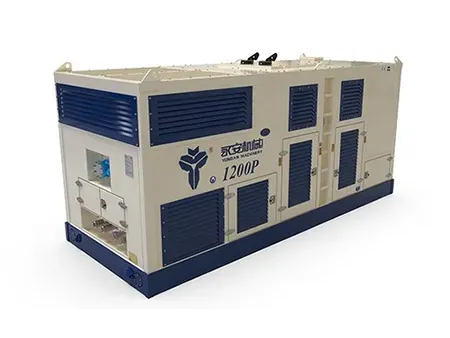

Recommended Power Pack	1200P×2

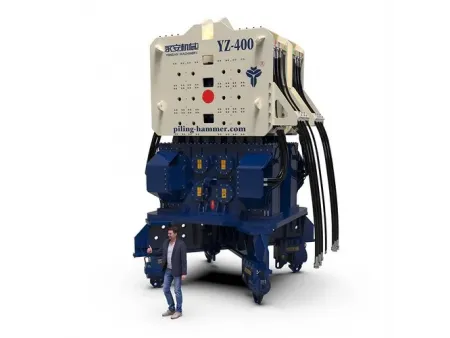

Model	YZ-400X2
Unit	Metric	US
Eccentric Moment	452 kg.m	39229 lbs.in
Maximum Frequency	1300 rpm	1300 rpm
Maximum Centrifugal Force	8370 kN	939 tons
Maximum Line Pull Force	5000 kN	561 tons
Maximum Amplitude	40 mm	1.56 in
Maximum Oil Flow	2600 L/min	686 gpm
Weight (without clamps and beam)	59060 kg	129932 lbs
Dimensions (L×W×H)	3460×3100×4470 mm	135×121×175 in
Recommended Power Pack	1400P×2

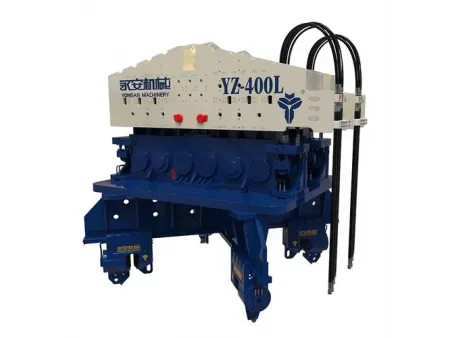

Model	YZ-400LX2
Unit	Metric	US
Eccentric Moment	400 kg.m	34716 lbs.in
Maximum Frequency	1400 rpm	1400 rpm
Maximum Centrifugal Force	8600 kN	965 tons
Maximum Line Pull Force	4800 kN	539 tons
Maximum Amplitude	37 mm	1.45 in
Maximum Oil Flow	2440 L/min	644 gpm
Weight (without clamps and beam)	63060 kg	138732 lbs
Dimensions (L×W×H)	4600×3300×4380 mm	180×129×171 in
Recommended Power Pack	1400P×2

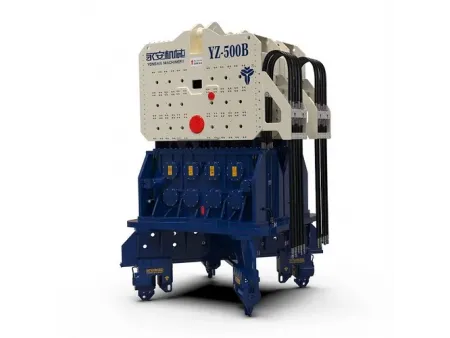

Model	YZ-500BX2
Unit	Metric	US
Eccentric Moment	500 kg.m	43398 lbs.in
Maximum Frequency	1400 rpm	1400 rpm
Maximum Centrifugal Force	10740 kN	1095 tons
Maximum Line Pull Force	6400 kN	652 tons
Maximum Amplitude	33 mm	1.30 in
Maximum Oil Flow	3200 L/min	845 gpm
Weight (without clamps and beam)	69500 kg	153221 lbs
Dimensions (L×W×H)	3820×3280×6040 mm	150×129×238 in
Recommended Power Pack	1600P×2

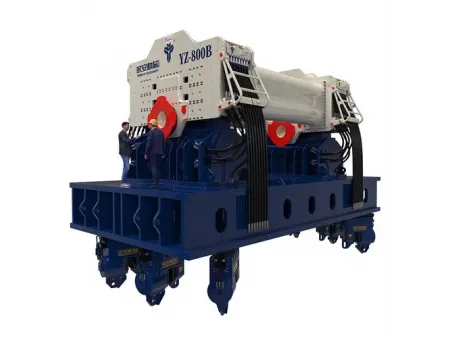

Model	YZ-800BX2
Unit	Metric	US
Eccentric Moment	1100 kg.m	95469 lbs.in
Maximum Frequency	1350 rpm	1350 rpm
Maximum Centrifugal Force	22000 kN	2469 tons
Maximum Line Pull Force	12000 kN	1347 tons
Maximum Amplitude	35 mm	1.37 in
Maximum Oil Flow	6000 L/min	1583 gpm
Weight (without clamps and beam)	268800 kg	591360 lbs
Dimensions (L×W×H)	7100×5400×7140 mm	277×211×279 in
Recommended Power Pack	3500P×2

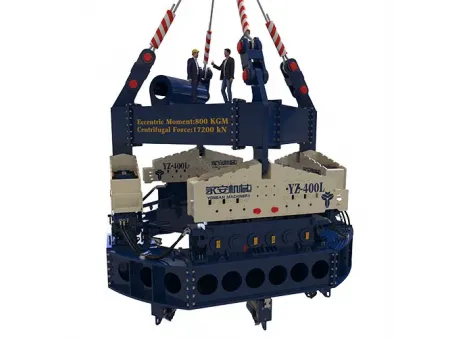

Model	YZ-400LX4
Unit	Metric	US
Eccentric Moment	800 kg.m	69432 lbs.in
Maximum Frequency	1400 rpm	1400 rpm
Maximum Centrifugal Force	17200 kN	1930 tons
Maximum Line Pull Force	10000 kN	1122 tons
Maximum Amplitude	11 mm	0.43 in
Maximum Oil Flow	4880 L/min	1288 gpm
Weight (without clamps and beam)	218980 kg	481756 lbs
Dimensions (L×W×H)	9500×9500×7160 mm	371×371×280 in
Recommended Power Pack	1200P×4

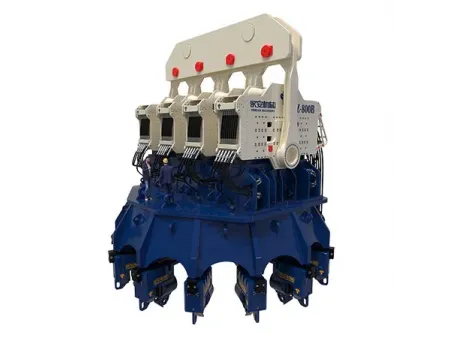

Model	YZ-800BX4
Unit	Metric	US
Eccentric Moment	2200 kg.m	190938 lbs.in
Maximum Frequency	1350 rpm	1350 rpm
Maximum Centrifugal Force	44000 kN	4938 tons
Maximum Line Pull Force	24000 kN	2694 tons
Maximum Amplitude	35 mm	1.37 in
Maximum Oil Flow	13500 L/min	3562 gpm
Weight (without clamps and beam)	470000 kg	1034000 lbs
Dimensions (L×W×H)	8600×8600×10050 mm	336×336×393 in
Recommended Power Pack	3500P×4

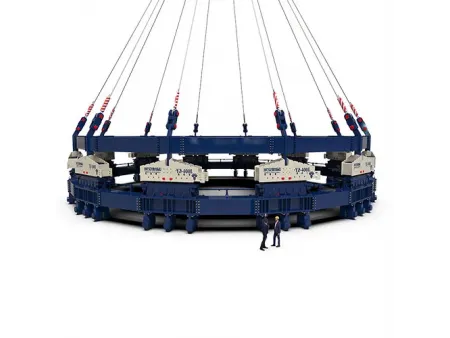

Model	YZ-400LX12
Unit	Metric	US
Eccentric Moment	2400 kg.m	208296 lbs.in
Maximum Frequency	1400 rpm	1400 rpm
Maximum Centrifugal Force	51600 kN	5791 tons
Maximum Line Pull Force	28800 kN	3232 tons
Maximum Amplitude	10.8 mm	0.42 in
Maximum Oil Flow	14640 L/min	3863 gpm
Weight (without clamps and beam)	728000 kg	1601600 lbs
Dimensions (L×W×H)	24100×24100×7510 mm	941×941×293 in
Recommended Power Pack	1200P×12

Mounting Options

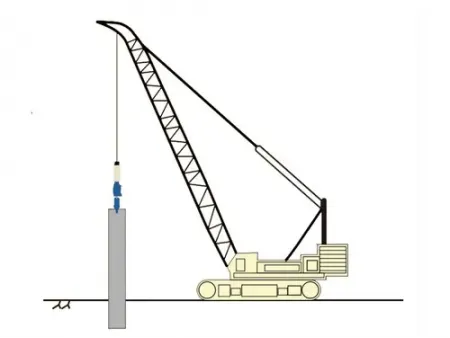

Tandem series hamers need to be mounted on crawler cranes, rough terrain cranes, or other similar equipment.

Crawler Crane

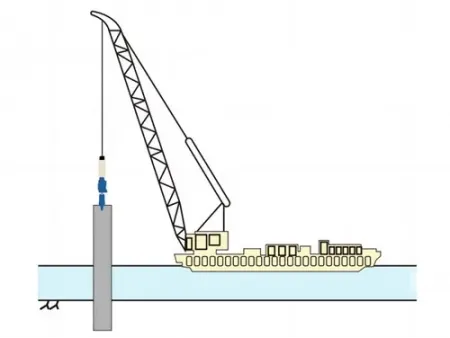

Floating Crane

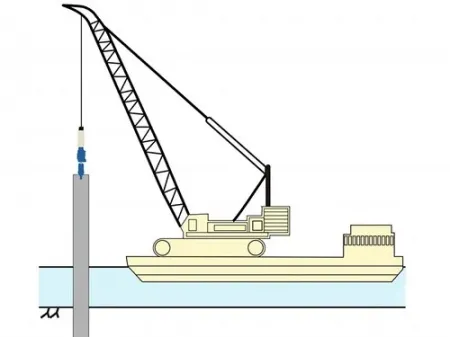

Crane-Fitted Barge

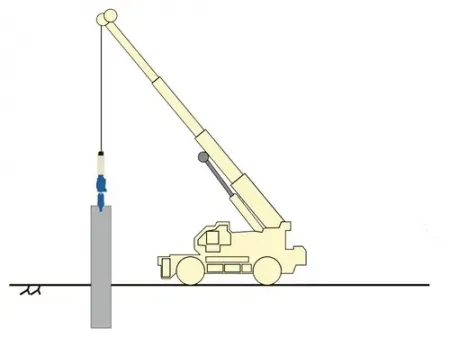

Rough Terrain Crane

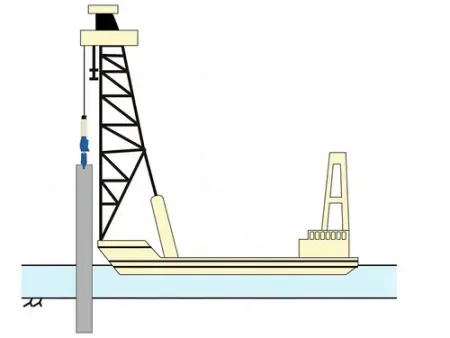

Piling Barge
