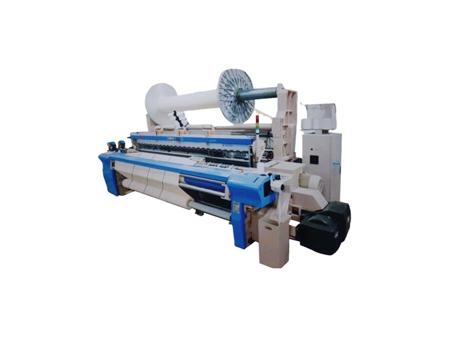

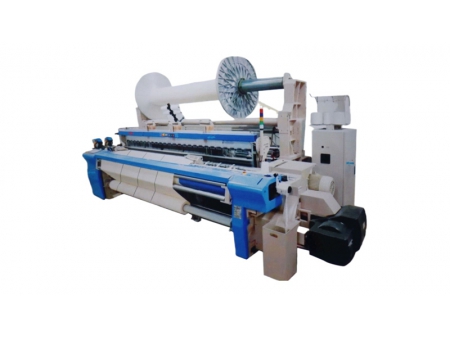

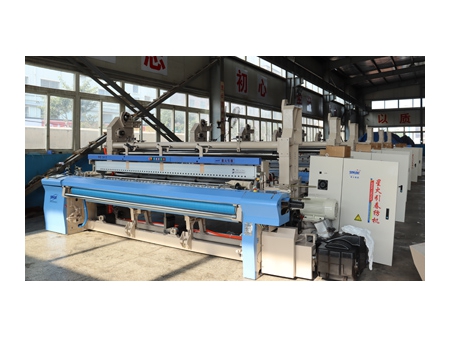

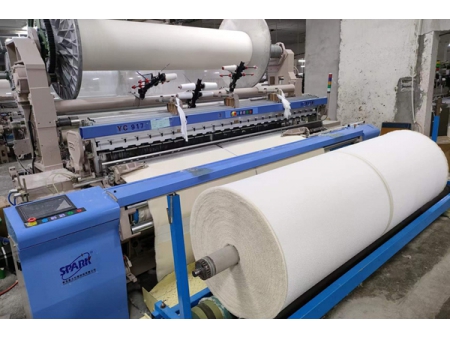

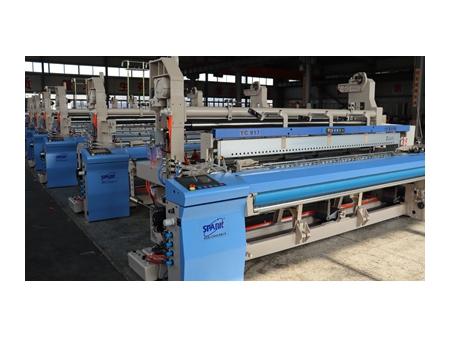

YC917 Terry Towel Air jet loom

Request a Quote

View All: http://rifa-texmachine.com/2018/4-2-air-jet-terry-towel-loom.html

This air jet loom is built to meet the demands of terry fabric weaving, offering a dedicated loop-forming mechanism and a sturdy frame for stable, consistent performance. Commonly used in towels and bath textiles, terry fabrics require precise loop control, which this loom is engineered to deliver with ease.

Features

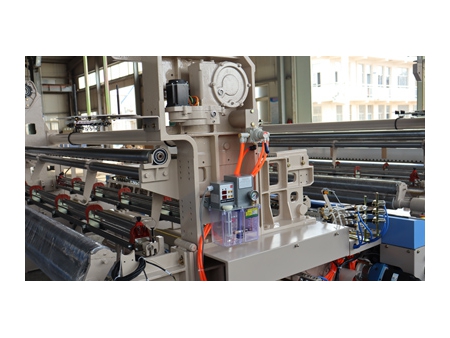

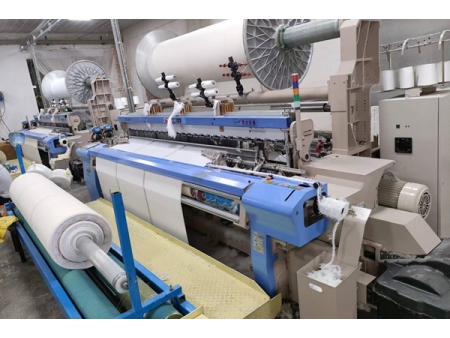

The frame is reinforced with sealed box-type side panels that are thicker and heavier than standard designs, providing better support and minimizing vibration during high-speed operation and loop formation. Four square-section braces at the base enhance structural rigidity, while the improved upper warp beam configuration offers added stability.
The upper warp beam loading is simplified thanks to a patented pneumatic flipping system on the rear support of the bottom warp beam. With a simple switch control, the beam is automatically lifted, allowing the warp beam to be inserted easily, there’s no need to remove covers or lift anything manually, making setup faster and less physically demanding.

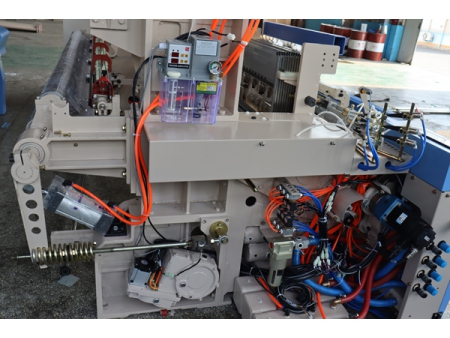

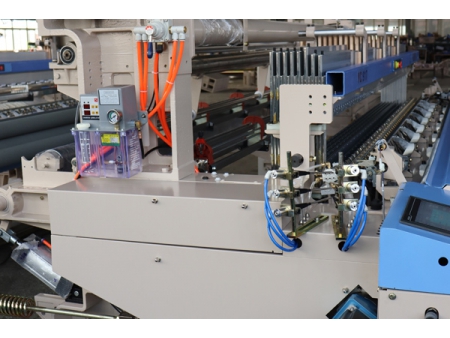

The air circuit has been reconfigured to include a front-end air reservoir before distribution. This added air storage capacity helps maintain more stable pressure, which significantly reduces pressure drops during startup and operation. Compared to conventional setups, it offers better pressure consistency and improves overall energy efficiency by lowering compressed air consumption.
A pile-removal mechanism can be added to meet the specific requirements of different terry fabrics. This optional feature provides greater flexibility and helps maintain fabric quality across various product types.
Some parts of the upper warp beam are interchangeable with those of the lower warp beam, making maintenance and repairs easier and more cost-efficient in the long term.

Machine specifications

Item		Configurations		Options
Reed width	Nominal	190, 210, 230, 260, 280, 340, 380 (cm)
	Effective	-80~0 (cm)
Weft selection		2, 4, 6 Colors
Motor	Start mode	Direct on-line super-start
	Power	3.7kW (Dobby shedding )
		5.5kW( Jacquard shedding)
	Operation	Two-hand button control, jogging with VFD
Picking		Main & Sub nozzle		Stretch nozzle
		Sub main nozzle		Weft brake system (2C)/WBS
		Picking control	One nozzle for three-weft insertion	One nozzle for 2-weft insertion
			Automatically control the insertion of the first weft yarn
		Weft insertion length control	Electric control weft feeder	Anti-Air loop device
Selvedge		Yarn twisted edge		Tuck-in device
Weft cut		Left side: mechanical; right: Electric
Lubricating		Main transmission: oil bath lubrication; others: Centralized lubrication by manual grease pump		Electric grease pump
Stopping	Weft stop	Photoelectric weft sensor with dual probe		Weft sensor with triple probes
	Wrap stop	Electric 2 row 2 column warp shafts
	Others	Auto stop after detecting selvedge yarn breakage, and waste yarn
	Sign for stop	Multi-functional 4-color indicator light for displaying stop status
Beating		Multi-support eccentric weft beating
		Controlled seven-linkage beating system
Shedding		Electric Dobby 16 heald frames
		Electric Jacquard
Let-off		Upper & down dual beam electric let-off
		Terry motion mechanism control
		Terry setting length control
		Warp beam disc dia.: ⌀800mm Terry warp disc dia.: ⌀914mm
Take-up		Electric take-up with stopping and empty weaving function
		Weft density range: 25-300 pcs/inch
		Count by towel rows and show on digital display
		Max. roll diameter (inside): ⌀600mm		Max. roll diameter (outside): ⌀1500mm
Loop formation device		"Reed action" pile loop device
		Servo motor controlled pile loop height
		Single-side pile loop height up to14mm, dual-side up to 28mm
