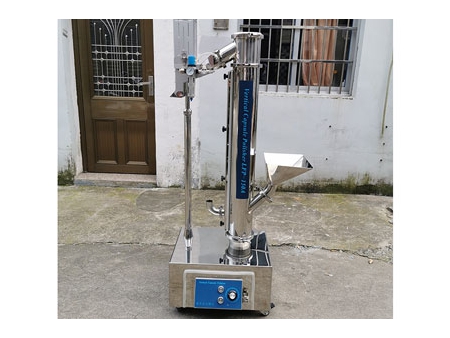

Vertical Capsule Polisher, LFP-150A
Request a Quote
LFP-150A vertical capsule polisher is used for efficiently removing excess dust and polishing capsule while conveying upward. This capsule polishing machine can be used together with capsule filling machine, capsule sorter and metal detector to realize polishing, conveying upward, sorting and detecting.
Features
- Used for polishing capsule while conveying upward;
- Feeding and discharge fort can be 360 degrees rotated to adapt to various operations;
- Capsule sorter is used for automatically separating empty capsules and unqualified capsules;
- Quick installation method provides installation and disassembly with ease;
- The parts which contact with capsules are made of stainless steel;
- Detachable brush for easy cleaning;
- Meets high hygienic requirements of the GMP standard.
Technical Specifications
| Model | ||
| Applicable capsule type | 00#, 0#, 1#, 2#, 3#, 4# | |
| Max. Capacity | 300000 capsules/h | 600000 capsules/h |
| Feeding height | 730mm | |
| Discharge height | 1050mm | 1100mm |
| Power supply | 1PH 220V/110V 50Hz/60Hz 0.02KW | |
| Compressed air | 0.3 m3/min 0.3Mpa | |
| Vacuum | 3.0 m3/min -0.014Mpa | |
| Machine dimension | 740*510*1500mm | |
| Machine weight | 75kg | 80kg |
