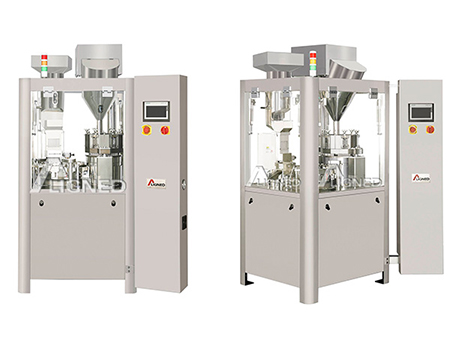

Automatic Capsule Filling Machine, NJP Series
Request a Quote
NJP series automatic capsule filling machine features innovatively intermittent rotary operation. Designed with a dosing disk, the capsule filler automates all processes including separation, filling, defective capsule rejection, capsule locking, and finished capsule ejection. Featuring a fully enclosed index table, the capsule machine is ideal pharmaceutical equipment for manufacturing hard capsules in the pharmaceutical and food industry.
Features
- Capable of filling capsules with powder, granules or pellets;
- Using a vacuum capsule positioning system ensures the capsules are placed and filled accurately;
- Fully enclosed index table with 10 stations for clean and efficient production;
- Filling weight, speed and capsule length can be freely adjusted;
- Modular powder slug filling mechanism is easy to disassemble for cleaning;
- Features a superior quality transmission mechanism with high performance, significantly reducing vibration during machine running. This ensures high stability and long service life;
- Main electrical control components are purchased from the well-known manufacturers in the world. Advanced control technology allows for precise control;
- With a LCD touch screen, the capsule filler is easy to operate with high accuracy.
Technical Specifications
| Model | ||||||
| Capacity(Capsules/h) | 12000 | 24000 | 48000 | 72000 | 138000 | 210000 |
| Machine weight(kg) | 700 | 800 | 900 | 1100 | 1500 | 2200 |
| Overall dimension(mm) | 610*680*1800 | 760*780*1800 | 840*820*1900 | 860*940*1900 | 1010*1080*2000 | 1170*1560*2000 |
| Power supply | 380/220V 50Hz | 380/220V 50Hz | 380/220V 50Hz | 380/220V 50Hz | 380/220V 50Hz | 380/220V 50Hz |
| Total power(KW) | 3 | 3 | 4 | 5 | 8 | 10.5 |
| No. of filling bores | 2 | 3 | 6 | 9 | 18 | 25 |
| Vacuum system | 20m3/h-0.04-0.08Mpa | 40m3/h-0.04-0.08Mpa | 63m3/h-0.04-0.08Mpa | 120m3 /h-0.04-0.08Mpa | ||
| Applicable capsule size | 00, 0, 1, 2, 3, 4, 5# | |||||
| Fill accuracy | ±2.5%-±3.5% | |||||
