SHO-PX Medical Imaging

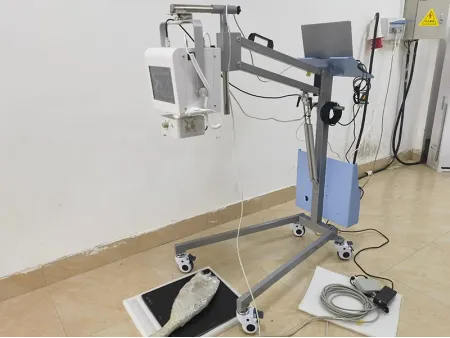

Digital radiography system with mobile stand for veterinary use

The SHO-PX veterinary X-ray machine is designed to make imaging pets and animals easier and more efficient for you. Its mobile design allows you to move and position it effortlessly, ensuring seamless operation in any veterinary setting.

Key Features
  • 10.4-inch Color Touchscreen: Intuitive controls for easy operation.
  • Adjustable Mobile Stand: Provides flexibility and stability for imaging.
  • 17 × 17-inch Wired FPD: Delivers high-resolution digital images.
  • 15.6-inch Dell Laptop: Ensures smooth workflow and fast image processing.
  • Multiple Exposure Controls: Operate via wired handbrake, wireless remote, or touchscreen button.
Specifications
Model SHO-PX01 SHO-PX02 SHO-PX03
Power (kW) 5 5.6 (with battery) 8
High voltage Generator
kV Range (kV) 40-110 40-125 40-125
mAs range (mAs) 0.2-200 0.1-200 0.1-200
mA range (mA) 20-100 10-100 10-100
Working frequency (kHz) ≥40
Communication mode RS232
Exposure time (s) 0.01-4
Exposure mode Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat storage (kHU) 56
Focal spot (mm) 1.8
Anode Angle (°C) 15
Collimator
Power supply AC/DC 24 V ± 10%
Light type 5W LED
Light delay time (s) 30±2
Illumination (Lux) ≥160
Inherent filtration 1.2mmAL@75 kV
Dimension
Main head unit (L×W×H)(mm) 290×265×230 425×240×220 425×240×220
Net weight (kg) 19 18 18
Head screen (inch) 10.4 (LCD color touch screen)
Trolley height adjustable range (mm) 515-1810 (from spot to floor)
Flat panel detector
  • Model: Venu1717X (Iray brand)
  • Dimension (L×W×H): 460×460×15mm
  • X-ray Energy: 40-150kV
  • Scintillator: CsI:Tl
  • Pixel Size: 139um
  • Fill Factor: 70%
  • Effective Array: 3072×3072
  • Effective Area (H×V): 427×427mm
  • Spatial Resolution: Min. 3.4 lp/mm
  • Image Transfer: Gigabit Ethernet

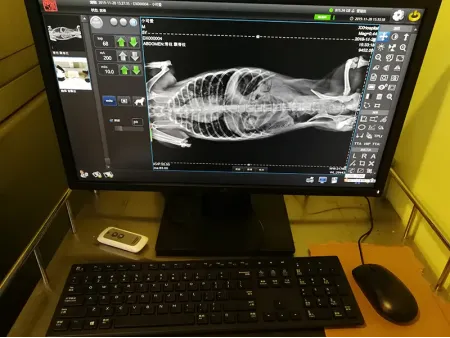

Working station (Console)
  • rand: Dell
  • Model: Vos15-3520
  • Processor: Smart Intel ® Core ™ i5-1135
  • Operating system: Windows 11 Home
  • Graphics Card: Intel ® UHD graphics
  • Card Memory: 32 GB DDR4
  • Storage: 512 GB SSD
  • Display size 15.6-inch screen Full HD (1920×1080)
  • Net weight: 1.69kg
  • Thickness: 16.96mm

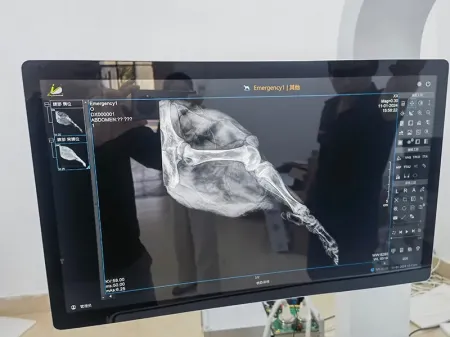

X-Ray Imaging

Looking for a reliable and mobile X-ray solution for your veterinary practice? Contact us today to find the best fit for your needs!
