Veterinary X-Ray Machine

Request a Quote

View All: http://medimaging-en.com/1-6-1-veterinary-x-ray-machine.html

SHO-MAX Medical Imaging

Digital radiography system with 23-inch display for stationary veterinary use

If you’re looking for a veterinary X-ray machine that delivers precision and efficiency, the SHO-MAX X-ray apparatus is designed for pet hospitals and veterinary clinics. With three power options, 20kW & 200mA, 20kW & 320mA, and 32kW & 400mA, you can choose the right level of performance for your practice.

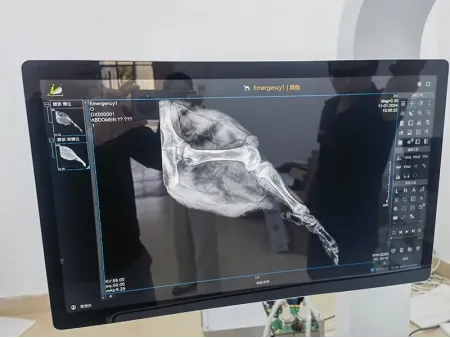

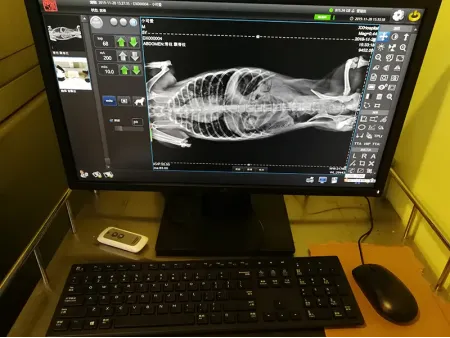

Equipped with an X-ray tube, X-ray generator, radiographic table, and a 17-inch × 17-inch wired flat panel detector, this system provides clear, high-quality imaging for accurate diagnostics. The 23-inch Dell desktop workstation and 23-inch adjustable side screen allow you to review images in real time, making examinations more efficient. For added convenience, you can control exposures using both the hand-brake and foot-pedal functions, ensuring flexibility in different veterinary settings.

Specifications

Model	SHO-MAX01	SHO-MAX02	SHO-MAX03
X-Ray Generator
Output Power (kW)	20	20	32
Power Voltage (V)	220 22	220 22	220 22
kV Range (kV)	40-120	40-120	40-125
mAs range (mAS)	0.32-200	0.32-200	0.32-400
mA range (mA)	32-200	32-320	32-400
Loading time (ms)	10-4000	10-5000	10-5000
X-Ray Tube
Small focus.1.0
Large focus:2.0
Anode speed:2800 r/min
Collimator
Inherent filtration 1.0 mm Al /75 kV
Light Source Super LED
Mechanic Table
SID (mm)	1000
Bearing (kg)	≤150
Top Table Size (mm)	1220×700×830
Floating Table Top Movements Four Ways

X-Ray Imaging

Need a veterinary X-ray solution that enhances your workflow and patient care? Contact us today to find the perfect machine for your practice!
