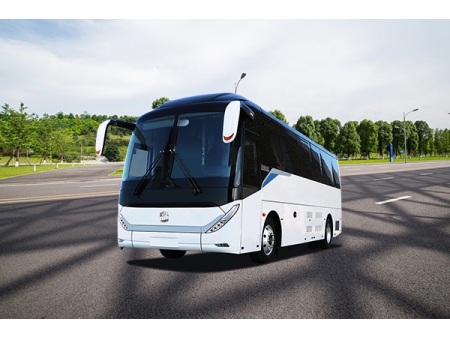

The LCK6125EV coach is well suited for medium-scale and large-scale urban public transportation systems, thanks to its clean appearance, beautiful interior and mature techniques. Its ultra-powerful battery contains 350 Kw·h of electricity, assuring the coach to run over 150 kilometers with the A.C. on and 250 kilometers with the A.C. off. The vehicle receives high praises from countless customers for its excellent dynamic properties, high reliability, high safety, low energy consumption and stable performance.
| Overall Parameter | |
| L*W*H (mm) | 11990*2500*3600 |
| Inner height (mm) | 2040 |
| Inner width (mm) | 2400 |
| Wheelbase (mm) | 6000 |
| Front/rear suspension (mm) | 2585/3405 |
| Approach/departure (º) | 8.5/8.5 |
| Ground clearance (mm) | 380 |
| Max. gross weight(kg) | 18600 |
| Capacity (seats) | 40 1 |
| Turning R(mm) | 12200 |
| Max. speed (km/h) | 90 |
| Power train system | |
| Battery model | Lithium battery |
| Unit Voltage/capacity | 3.2V/20Ah |
| Total KWH | 350 |
| Motor model | Three-phase AC asynchronous motor |
| Power train type | Direction |
| Voltage (V) | 547.2 (DC) |
| Rated /Max. power (Kw) | 142/230 |
| Rated /Max. torque (N.m) | 800/2400 |
| Running distance (km) | At least 250kms. (With Air-on, average speed 70km/h) |
| Charging type | Slow charging model (3-4 hours, with 120kw charger) |
| Connector/ Socket type | IEC62196 TYPE-2 |
| Chassis | |
| Front axle | Dena 7 T; disc brake |
| Rear axle | Dena 13T, drum brake |
| Suspension | Air suspension 2/4； |
| Brake | Electric air pumper; dual-circuit air brake; front disc and rear drum brake; air drier; ABS; and rear automatic adjustment arm |
| Tire | Michelin 295/70R22.5 ×6 |
| Battery | 120Ah×2 |
| Motor radiator | Electric fan |
| Rear view mirror | Electric rearview mirror; inner mirror |
| Air conditioner | ZHONGTONG 26000Kcal/h |
| Seats | 45 1, ZTZY3072 model, ZTZY1021 adjustable driver seat |
