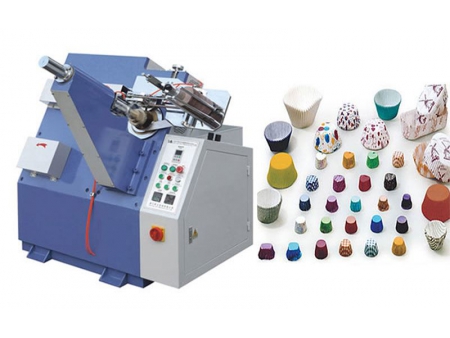

Cake Tray Forming Machine
This product has been discontinued and removed from our shelves.
The cake tray forming machine JDGT adopts pneumatically controlled manipulator for paper clamping, paper releasing, automatic paper slitting, thermal forming, and cake tray unloading. The mould for the cake tray making machine is interchangeable for the production of cake tray in different sizes. The cake tray forming machine is highly appraised by our client because of the high production capacity.
This paper cake tray machinery comes with simple structure. The frequency control mechanical transmission, as well as the automatic heating temperature controller, helps obtain simple operation, high production capacity, and stable performance of the disposal cake tray production line.
| Model | JDGT |
| Paper size | Φ55-Φ130mm |
| Raw material | Greaseproof paper |
| Paper thickness | 30-40gsm |
| Production capacity | 15-20pcs/time, 20-40times/min. |
| Power supply | 380V/50Hz |
| Total power | 2.5kW |
| Air compressor | Working pressure: 0.6MPa (Prepared by customer) Air volume 0.3m3/min |
| Weight | 500kg |
| Machine dimension | 1500×1300×1400mm |
