Description

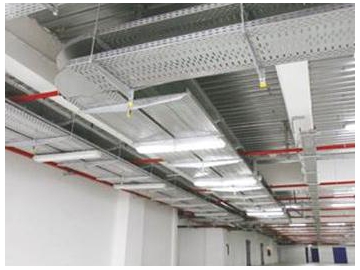

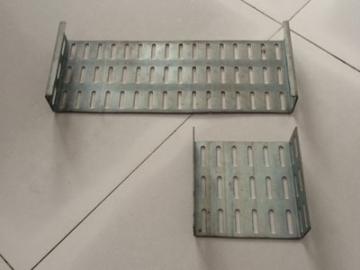

Cable tray forming machine is used for producing cable tray through cold roll forming of hot dip galvanized steel coils with the thickness of 0.6-2.0mm.

Specifications
The Line’s Specifications
Weight About 50000kgs
Whole line’s dimension About 45m x 3m x 1.5m (length x width x height)
Color Main color: green
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 0.6-2.0mm
Coil width According to products size
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations About 24
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4-6m/min
Forming rollers material Gcr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system Panasonic PLC and Yaskawa Converter
Electric Power requirement Main motor power: 4x5.5kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set

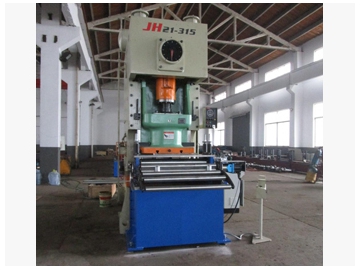

Punching machine 1 set

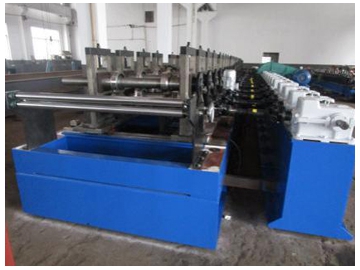

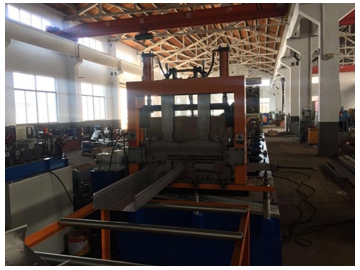

Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

Our strut channel roll forming machine can be customized according to your requirements of size and raw material. We are committed to guarantee your roll forming system top performances after commissioning. With ease to install and operate, it can start working automatically after refilled with hydraulic fluid according to the instructions. You can refer to our provided video or consult our professionals for help when you encounter any problems with installation and use.
