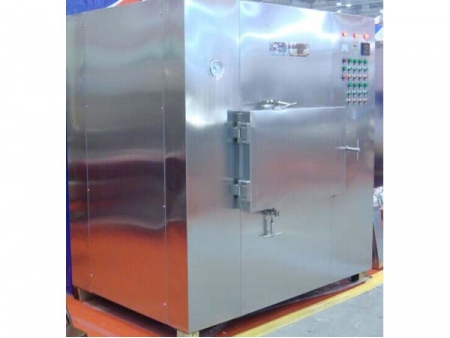

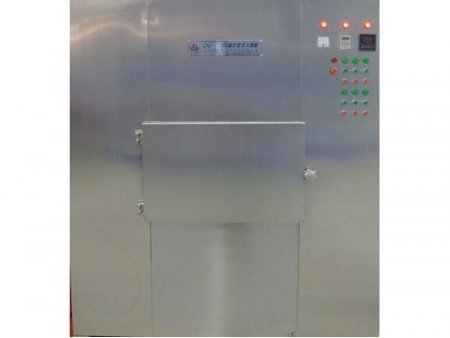

Microwave Vacuum Dryer

Request a Quote

View All: http://materialdryer.com/1-6-6-microwave-vacuum-dryer/index.html

The microwave vacuum dryer uses an electric heat source and can dry and sterilize materials under 250°C for long periods.

Parameters

Items/model	HD-06R	HD-10R	HD-15R	HD-24F	HD-48F
Power(KW)	6	10	15	24	48
Frequency(MHz)	2450±15
Material spreading area(m²)	1	1.5	15-20	24-30	40-60
Evaporation capacity (kg/h)	6-9	10-13	15-20	24-30	40-60
Rotating speed (r/min)	0~5
Vacuum degree (MPa)	≥0.095
Leakage(mw/c)	< 5 (complied with international standard)
Overall dimensions (L×W×H)	1500×1800×2100	1600×1800×2100	1850×2400×2200	3100×2700×2000	1500×1800×2200

Features

The parallel flow of hot air offers an excellent sterilization effect.
Automatic temperature control.
Automatic control procedures are: heating - drying -temperature stabilization – shut down.
This drying equipment is suitable for "GMP" management in the pharmaceutical industry to sterilize and dry materials.

As a professional industrial dryer manufacturer, we provide customized products according to your requirement.
