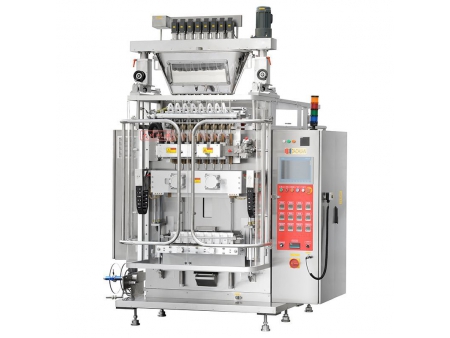

Vertical Form Fill Seal Machine , DC-890
- Bag width
11-45mm (non-adjustable once selected)
- Bag length
30-180mm (adjustable)
- Packing speed
20-70 bags/lane/min
The DC-890 automatic multi-lane back seal stick packaging equipment is the perfect choice for food, medical, and everyday household chemical products requiring stick packaging for liquids, powders, and particles. We offer 6, 8 and 10 lane machines, tailored to meet customer's requirements in terms of bag size and output. Simple controls make this machine a breeze to operate - input the desired values into the system to adjust bag length, production time, and save specific parameters for the utmost convenience. With features like large-scale production capacity, high speed production, and back seal packing, it's easy to see why the DC-890 has become the top choice for customer satisfaction.
Specifications
| Bag width | 11-45mm (non-adjustable once selected) |
| Bag length | 30-180mm (adjustable) |
| Filling volume | 1-50ml |
| Packing speed | 20-70 bags/lane/min |
| Power supply | 380V, 4-7kW, 3phase |
| Air pressure | 4-5kgf/m³ |
| Machine weight | 2000kg |

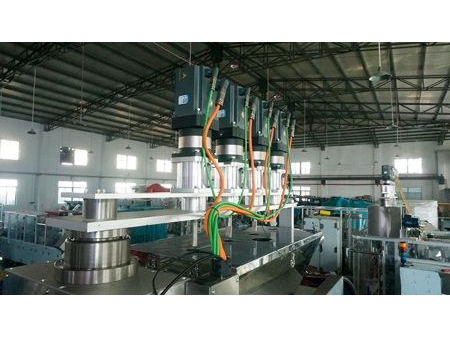

- The servo control system adds a layer of customization to the feeding position adjustment process, enabling customers to make changes directly from the touch screen. This simplifies the commissioning experience associated with mechanical transmission stops and the utilization of tools, while also increasing safety levels.
- The material shaking device can be used to ensure high quality products by preventing material accumulation along the pipe wall and material clogging at the seal, which increases production stability as well as sealing performance.

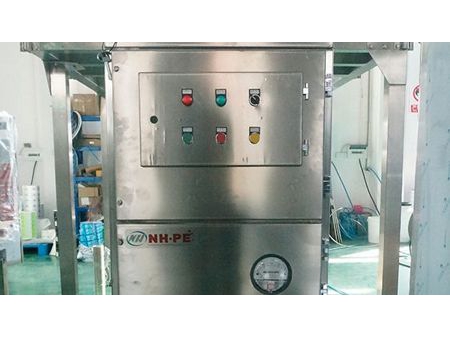

- A dust collection system is essential when it comes to feeding and material shaking. As the process can, unfortunately, cause dust particles to rise, the multi-lane device is designed to capture it and firmly secure seal consistency as well as maintain a desirable cleanliness .
- The horizontal seal cutter and the easy-tear horizontal seal can be effortlessly adjusted by motorized control, eliminating the need for manual tools. Settings can be made simply by inputting data on the touchscreen, thus making the commissioning process much more speedy. This offers an intuitive and user-friendly experience for the operator.
The unique horizontal seal makes it possible to tailor the shape of the cutter to the desired look desired by the customer. For instance, products made with a double rounded corner cutting tool create a more modern and aesthetically pleasing appearance than traditional products with four right angles. This also prevents potential injury to the consumer since the product is less likely to cut or prick the skin. Plus, the superior appearance, safety and quality of the product are sure to be appreciated. - The seal machine boasts empty package detection and removal devices, effectively eliminating any additional labor costs that could arise from intermingling empty package detection with standard products during production.

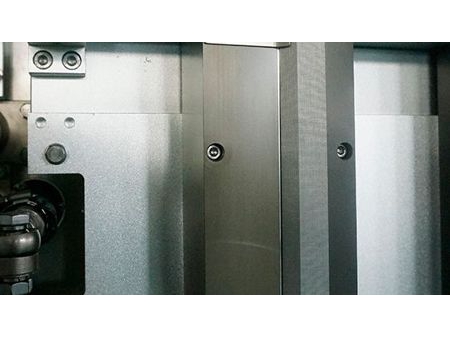

- Standard safety door (for safety production)

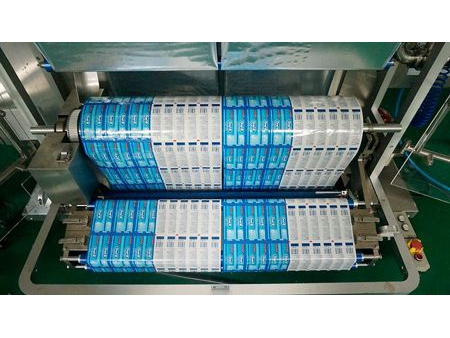

- Film roll holder
- Package forming and back sealing device

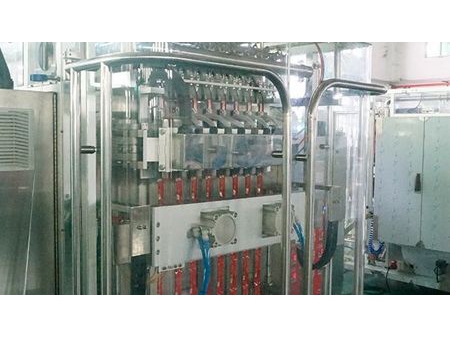

- Back seal and feeding nozzle

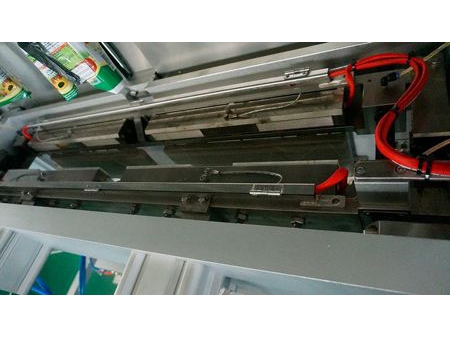

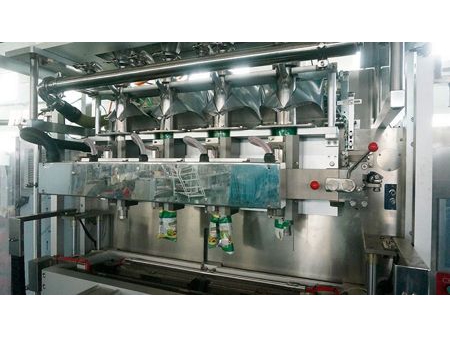

- Transverse heat sealing unit

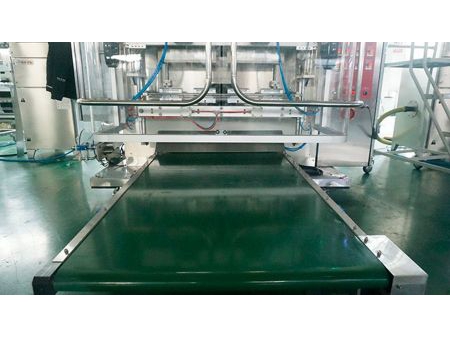

- Finished conveyor belt

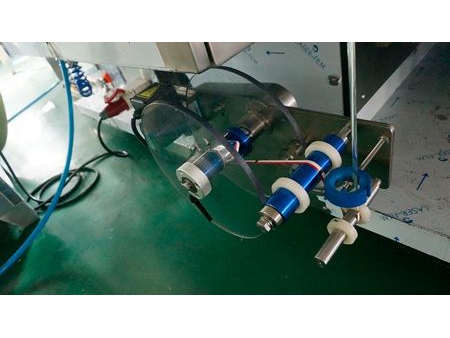

- Waste film collection device

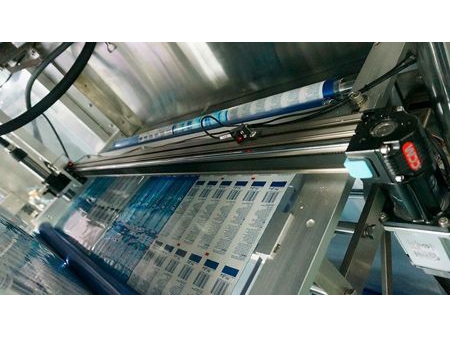

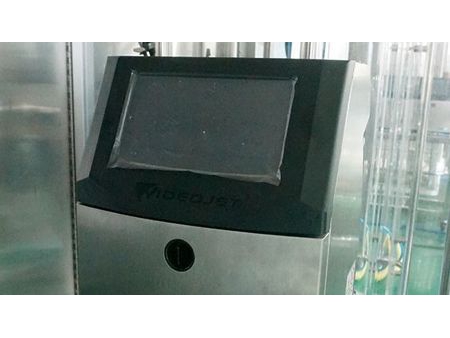

- Inkjet coding device (optional)
- Inkjet coding limit (with optional inkjet coding device)
