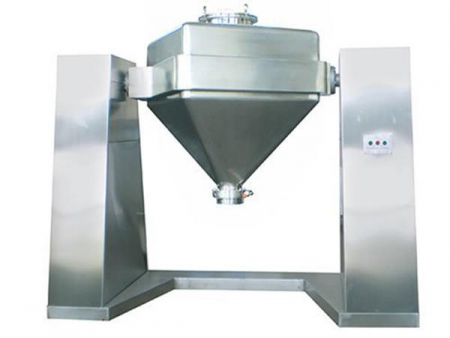

Square Cone Blender

Request a Quote

View All: http://materialdryer.com/1-7-6-square-cone-blender/index.html

Materials are charged into a closed square-cone mixing barrel. The symmetrical axes of hopper and the axes of rotating shaft form an included angle. Materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing. The whole machine features novel design, compact structure, and good appearance. The evenness of mixing reaches 99%, and the volume charge coefficient reaches 0.8.

Specifications

Specification		FZH-1500	FZH-2000
total volume (L)		1500	2000
charge volume (L)		1050	1400
charge weight (kg)		750	1000
rotation speed of main shaft (r/min)		10	8
motor power (kw)		5.5	7.5
inlet diameter(mm)		560	560
outlet diameter(mm)		200	200
overall dimension ( mm )	2800	2915	3800
	(W)	2300	2500
	(H)	2950	3200
weight (kg)		1500	2000

Main Advantages

Low rotating height, smooth running, reliable performance, easy operation.
Highly polished inner and outer surfaces of the barrel without dead comer.
Easy to discharge materials.
Easy to clear, no cross contamination.
Confining to the requirement of GMP.
