VH-50 V

Twin shell blender for mixing dry powders and granules

20 Revolutions Per Minute
20 L Mixing Volume

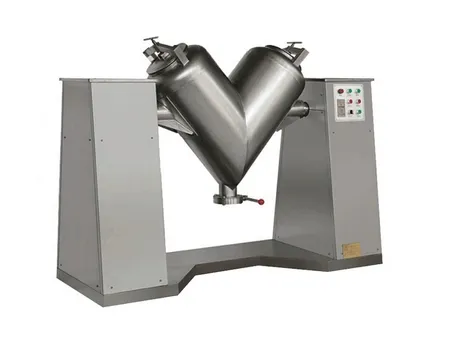

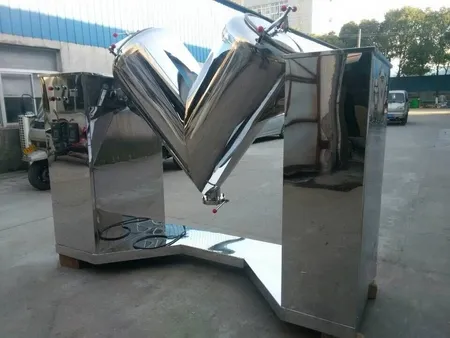

The V-cone blender consists of two V-shaped cylindrical containers, a drive system, and a frame. This unique V-shaped structure creates a diverse motion trajectory during the mixing process, where the powder materials in the shell are displaced back and forth, constantly being split and intermixed as the shell rotates, significantly enhancing mixing uniformity and efficiency compared to traditional blending equipment.

The twin shell blender is suitable for blending a wide range of materials, including powder-to-powder, powder-to-granule, and granule-to-granule combinations. Its adjustable parameters, such as mixing time and rotation speed, cater to diverse production requirements in pharmaceutical manufacturing, whether for large-scale production lines or small-scale R&D labs. This blending machine offers exceptional adaptability and versatility.

Key Features

Advanced mixing technology ensures uniform blending of powders and granules, with no dead spots or residue, guaranteeing product consistency and stability.
Simplified design for easy operation and quick cleaning, minimizing downtime and reducing maintenance costs, ideal for environments requiring frequent material changes
Equipped with automated control systems for precise blending, automatic operation, and monitoring, reducing human error and boosting blending efficiency
Tailored to meet specific customer needs, accommodating different capacities, material characteristics, and blending processes, enhancing operational flexibility

Specifications

Model	VH-50
Vessel Volume	50L
Optimal Mixing Volume	20L
Machine Dimensions (L×W×H)	1350×450×1160mm
Feed Inlet Diameter	Ø150mm
Discharge Outlet Diameter	Ø80mm
Rotation Speed	20rpm
Motor Power	0.75kW
