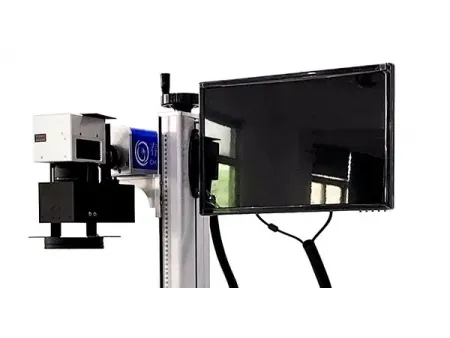

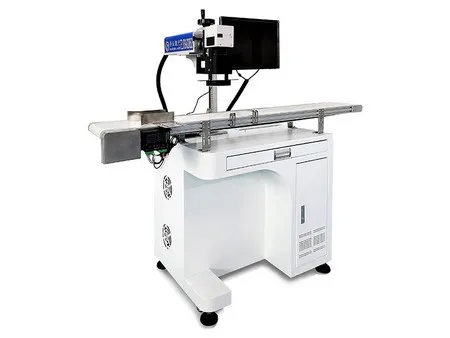

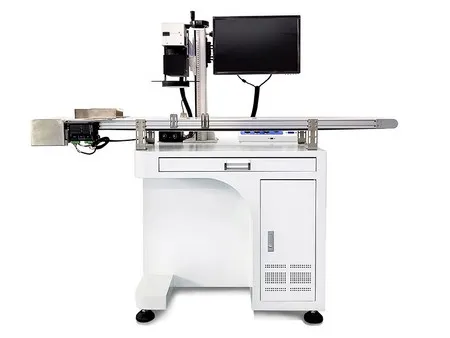

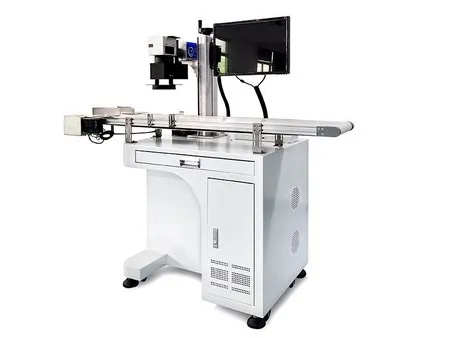

CCD visual positioning technology is widely used in modern manufacturing for ensuring precision and efficiency. It enables accurate marking by capturing the position of products, making it ideal for automated production lines and reducing manual labor costs. Our CCD visual positioning laser marking workstation features a position-capturing camera system for fast and accurate marking. This laser engraving system can quickly locate and mark multiple products at once, even supporting automated conveyor belt feeding. The visual positioning reduces the need for manual labor, improves efficiency, and easily integrates with automated production lines, making it cost-effective.

Marking speed: 20-200kHz
Visual positioning system: accuracy ±0.05-0.1
CCD camera: 20 megapixel

Compared to traditional laser markers, this system significantly reduces the time between markings, saving 3-5 times the product handling time and offering higher position accuracy. Visual positioning laser marking machines are suitable for ultra-fine processing markets, crafts, IC electronic components, and PPC circuit boards. We offer fiber, UV, and CO₂ visual positioning laser marking machines. Contact us to find the right solution for your needs.

Applications

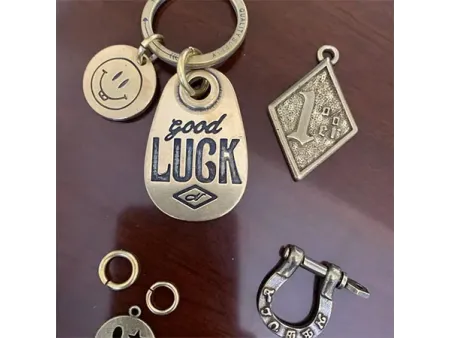

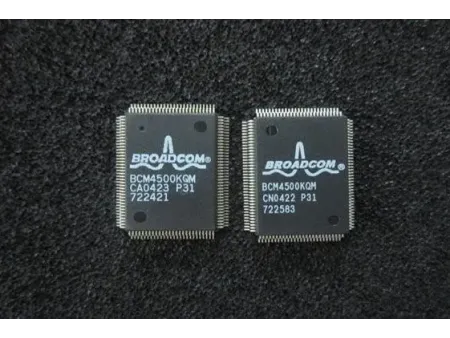

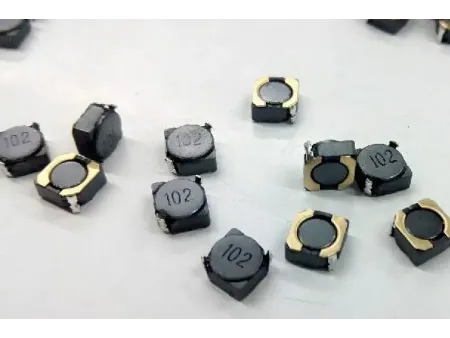

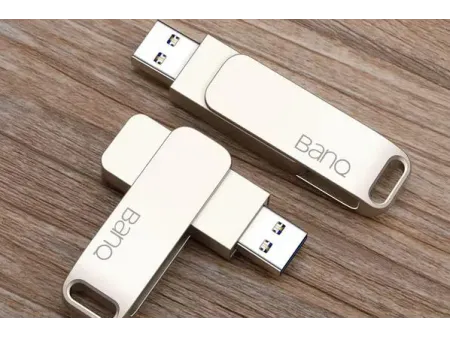

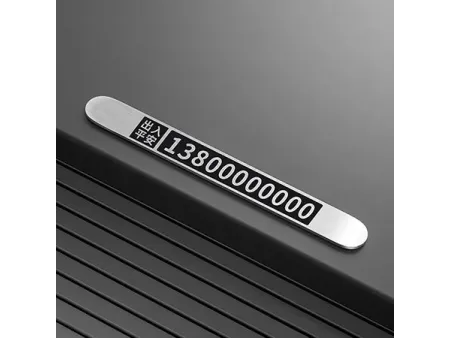

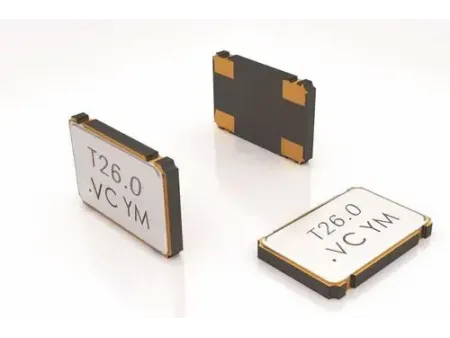

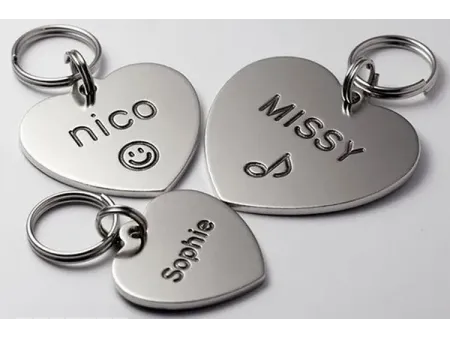

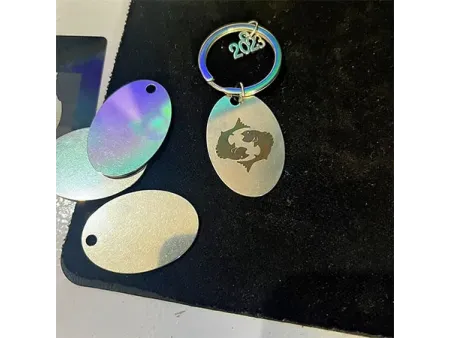

Ideal for marking integrated circuits, mobile phone accessories, industrial bearings, watches, electronic and communication products, jewelry, and e-cigarettes. It is widely used in industries that demand precision and efficiency.

Features
  • The visual positioning laser marking system can automatically detect, identify, and mark products regardless of their position, angle, or quantity. This feature ensures efficient and precise marking on every item
  • It supports a variety of lasers, including UV, fiber, and CO₂, making it versatile for marking different types of materials
  • Equipped with a high-precision visual positioning system, it guarantees accurate placement and quick response times, enhancing overall productivity
Specifications
Model CC-UV3W/GQ20W CC-UV5W/GQ30W CC-UV10W/50W
Laser power 3W/20W 5W/30W 10W/50W
Laser wavelength 355nm/1064nm
Beam quality M²< 1.2
Pulse stability < 3%
Pulse width < 10ns(@20kHz) < 15ns(@20kHz) < 20ns(@20kHz)
Operating temperature 15-30 ℃
Repetition frequency 20-200kHz
Power supply AC220V, 50HZ
Cooling method Water cooling/air cooling
Total power 600W 600W 1.5kW
Visual positioning system Accuracy:±0.05-0.1 (optional depending on products being marked)
CCD camera 20 megapixel (optional depending on products being marked)
XY slide X:500 Y:300 (optional depending on products being marked)
