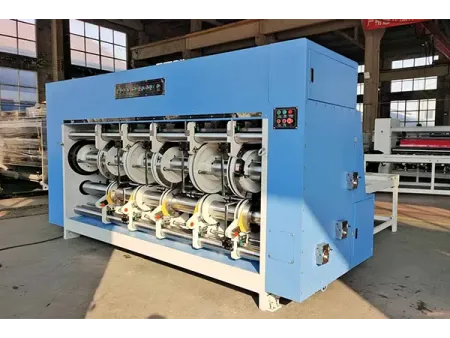

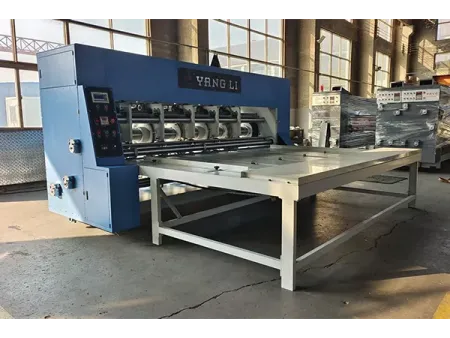

Corrugated Cardboard Slotting Machine with Chain Feeder, CZYL-RS4
Request a Quote
Corrugated Cardboard Converting Machines
The corrugated cardboard slotting machine with chain feeder is a multifunctional unit designed to combine corner cutting, slotting, creasing, and edge trimming into one operation. It is particularly suitable for handling single cardboard sheets, including warped boards, making it versatile for a wide range of applications.
Features
- Integrated Processing
Combines corner cutting, slotting, rolling, and edge trimming into one efficient workflow. - Manual Feeding
Supports single-sheet manual feeding, adaptable even for warped corrugated boards. - Electric Phase Adjustment
Slotting knife seat allows 360° forward and reverse rotation with circumferential adjustment. - Easy Fine-Tuning
Motorized micro-adjustment ensures convenient operation, precise dimension setting, and reliable locking. - Accurate Slotting
Guarantees high precision and consistent slotting results.
Specifications
| Model | | | | | | |
| Max. speed (sheets/min) | 60 | 60 | 60 | 60 | 60 | 60 |
| Paper feeding accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Min. sheet size (mm) | 220×500 | 220×500 | 320×600 | 320×600 | 350×600 | 350×600 |
| Max. sheet size (mm) | 900×2000 | 900×2200 | 1200×2400 | 1200×2800 | 1400×2600 | 1600×2800 |
| Min. slotting size (L×W×H) (mm) | 220×60×70 | 220×60×70 | 250×60×80 | 250×60×80 | 250×60×80 | 250×60×80 |
| Max. slotting depth (mm) | 230 | 230 | 310 | 310 | 370 | 410 |
| Additional knifes can be added to increase slotting depth | ||||||
| Slotting accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
