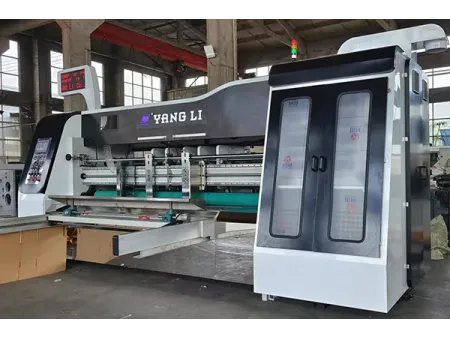

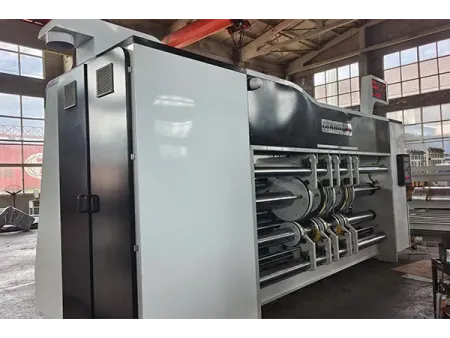

Automatic Corrugated Cardboard Slotter Die Cutter, CZYL-SSK

Request a Quote

Website: http://corrugatedline-en.com/2-7-automatic-corrugated-cardboard-slotter-die-cutter.html

Corrugated Cardboard Converting Machines

The automatic corrugated cardboard slotter die cutter is an intelligent slotting machine engineered for high accuracy and flexible carton production. It combines advanced die-cutting control with efficient feeding and energy-saving systems, making it a reliable choice for both large-scale and customized packaging orders.

Features

Die-Cutting Precision
Computerized and electric digital control of die-cutting knife phase with 360° adjustment. Cross adjustment range of ±5 mm.

Durable Rubber Pad System
Automatic lateral movement and line-speed compensation ensure uniform wear of the die-cutting rubber pad. Includes a pad repair system for repeated use, extending service life and maintaining high-quality results.

Cam-Driven Roller Movement
Rubber pad roller equipped with cam-type horizontal traverse of ±35 mm to extend pad durability.

Stable Paper Feeding
Lightweight aluminum alloy rear-kick vacuum feeding mechanism with multiple rolling bearings ensures smooth and stable operation.

Automated Alignment
Left and right side guides, plus rear stopper, are digitally controlled via computer and electric systems. Pneumatic side baffles provide precise sheet alignment.

Flexible Feeding Options
Supports both continuous and skip feeding, with infrared photoelectric counting for accuracy.

Energy-Saving Drive
Equipped with Siemens low-voltage electrical components and a frequency conversion drive system, reducing power consumption by up to 30%.

Specifications of Servo Cardboard Die Cutting Machine

Model	920	1224	1426	1628
Max. speed (sheets/min)	300	250	180	150
Max. paper feeding size (mm)	900×2000	1200×2400	1400×2600	1600×2800
Max. die cutting size (mm)	900×2000	1200×2400	1400×2600	1600×2800
Cardboard thickness (mm)	2-10	2-10	2-10	2-10

Specifications of Servo Cardboard Slotting Machine

Model	920	922	1224	1228	1426	1628
Max. speed (sheets/min)	300	260	250	200	180	150
Paper feeding accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Min. sheet size (mm)	250×500	250×500	320×600	320×600	350×600	350×600
Max. sheet size (mm)	900×2000	900×2200	1200×2400	1200×2800	1400×2600	1600×2800
Min. slotting size (L×W×H) (mm)	220×60×70	220×60×70	250×60×80	250×60×80	250×60×80	250×60×80
Max. slotting depth (mm)	230	230	310	310	370	410
Max. slotting depth (mm)	Additional knifes can be added to increase slotting depth
Slotting accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
