103mm Chain Width
- Beam width: 105mm
- Chain width: 103mm
- Chain pitch: 35.5mm
- Chain tension limit/tensile strength: 1250N
- Item width: 25-300mm
- Maximum item weight:
- Horizontal transport: 20kg
Vertical transport: 10kg - Maximum conveyor load: 150-300kg
- Maximum conveyor length: 30m
*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

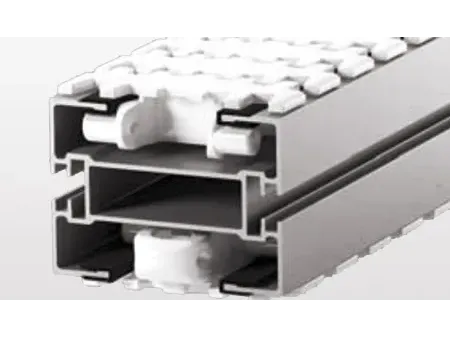

The CXH modular plastic chain conveyor is an ideal solution for conveying applications in industries such as pharmaceuticals, cosmetics, food and beverage, and bearings. It features a three-dimensional design with polyoxymethylene (POM) conveyor chains and aluminum alloy frames, making the conveyor system an perfect choice for automated production lines.
- High impact resistance: This modular plastic chain conveyor is engineered with highly impact resistant, reliable, and low maintenance materials.
- Compatible and convenient: Our plastic chain conveyors are designed to fit various conveyor lines from renowned brands like Flexlink, FlexMove, and Rexroth, ensuring convenient and flexible solutions.
- Customizable and cost-friendly: We utilize standard conveyor components from our vast inventory to craft tailored conveyor solutions for each customer, streamlining assembly processes for swift delivery of customized solutions. This method guarantees cost-efficiency.

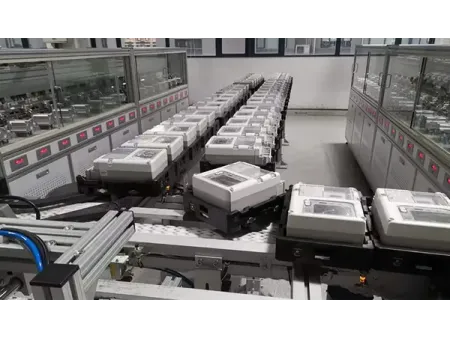

This conveyor is suitable for conveying products such as ball bearings, motor rotors, energy meters, low-voltage switches, paper towels, instruments and meters, car parts, packaged food, etc.
This plastic chain conveyor can be used in industries such as industrial manufacturing, electrical/electronic industries, automotive, logistics industries, packaging, etc.
This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

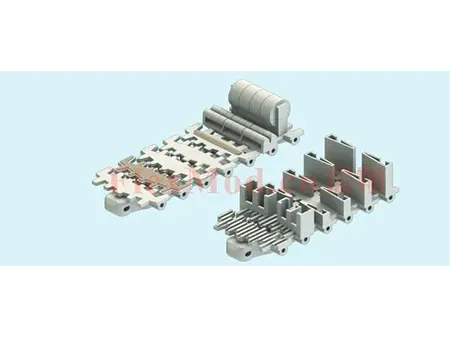

Conveyor chains

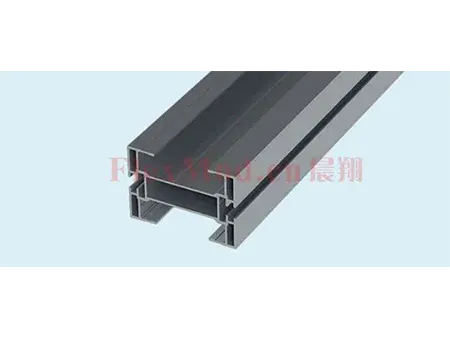

Conveyor beam

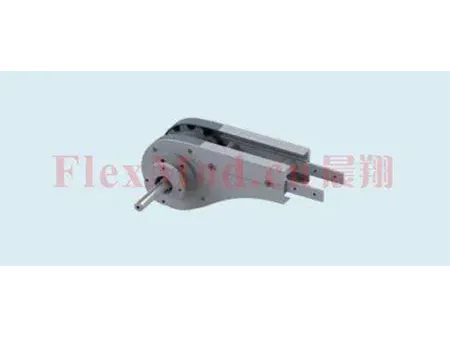

End drive units

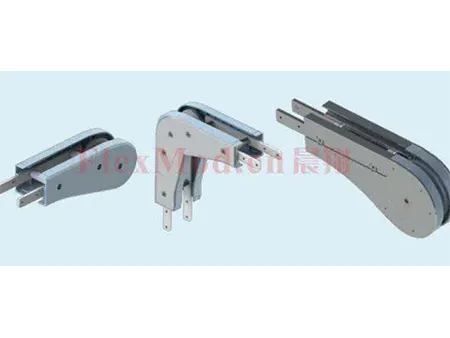

Idler end unit

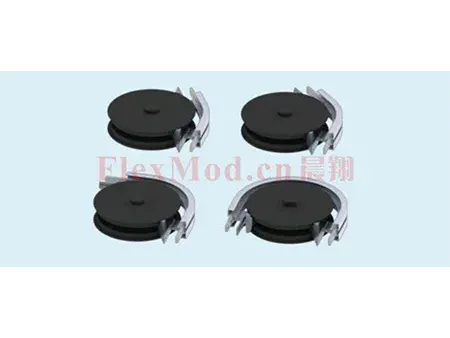

Horizontal plain bends
