102mm Chain Width
- Beam width: 105mm
- Chain width: 102mm
- Chain pitch: 38.1mm
- Chain tension limit/tensile strength: 2500N
- Item width: 50-300mm
- Maximum item weight:
- Horizontal transport:30kg
Vertical transport: 15kg - Maximum conveyor load: 800kg
- Maximum conveyor length: 40m
*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

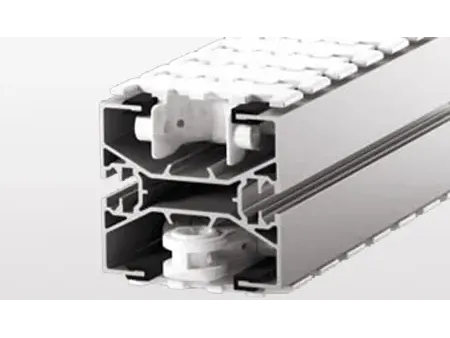

Our CXK modular plastic chain conveyor utilizes our exclusive flexible conveyor chains, which are crafted from DuPont raw materials, with diverse mold specifications and compatibility. Known for top-notch service and technical support, its product quality rivals international brands in the same category. The standard conveyor chain width is 102 millimeters.
- Customizable and cost-efficient: We design conveyor solutions tailored to your unique needs using readily available standard conveyor components. This approach streamlines design and assembly processes, ensuring quick delivery of customized solutions that are cost-efficient for you.
- Flexible conveying solutions: Our modular plastic chain conveyors are designed to fit multiple conveyor lines of trusted brands like Flexlink, FlexMove, and Rexroth.

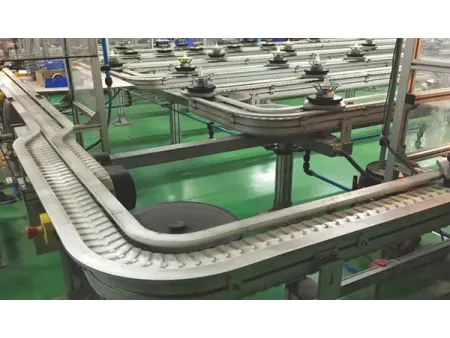

This modular plastic chain conveyor is suitable for conveying products such as ball bearings, gears, energy meters, high-voltage switches, hydraulic gear pumps, car parts, tooling plates, etc. It can be used in industries such as industrial manufacturing, electrical/electronic industries, automotive, logistics industries, etc.
This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

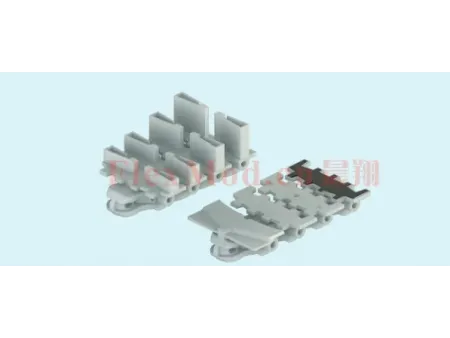

Conveyor chains

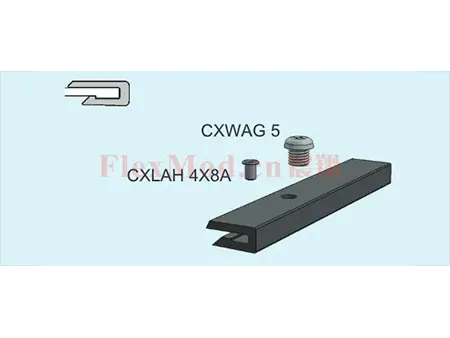

Conveyor beam

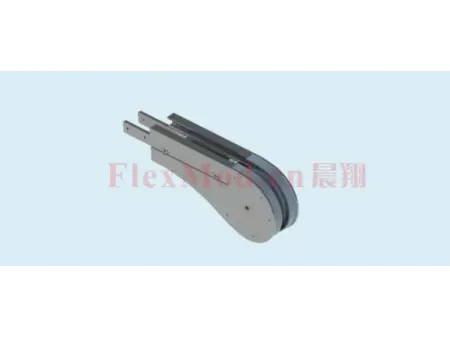

Idler end unit

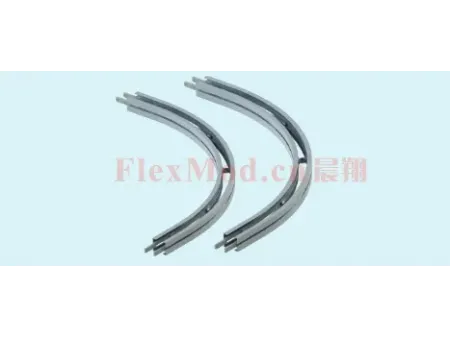

Horizontal plain bends
