83mm Chain Width

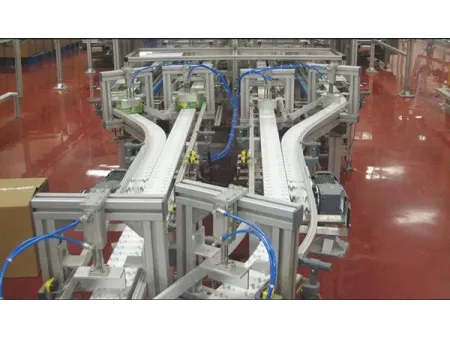

The CX85 modular plastic chain conveyor is highly favored in production lines for its versatility. Made with DuPont materials engineered plastic chains and anodized aluminum alloy profiles, the modular conveyor handles various products and excels in pallet conveyance and vertical lifting operations. The standard conveyor chain width is 83 millimeters.
- Beam width: 85mm
- Chain width: 83mm
- Chain pitch: 33.5mm
- Chain tension limit/tensile strength: 1250N
- Item width: 20-200mm
- Maximum item weight:
- Horizontal transport:15kg
Vertical transport: 10kg - Maximum conveyor load: 200kg
- Maximum conveyor length: 30m
- Item width: 40-300mm
- Maximum conveyor length: 8m
- Maximum item weight: 2kg
- Materials: aluminum/stainless steel
*The conveyor components may vary, and this conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.
- Easy maintenance: The conveyor chain is pure white, and the conveying equipment does not require lubrication or regular maintenance for operation.
- Highly resistant to corrosion: It is corrosion-resistant and complies with GMP regulations for safety and durability.
- Compatible conveying solutions: Flexible conveying solution, as all our lines of plastic chain conveyors are designed to fit multiple conveyor systems from other conveyor manufacturers, including well-known brands such as Flexlink, FlexMove, and Rexroth.
This modular plastic chain conveyor is suitable for conveying products such as ball valves, bearings, motor rotors, car parts, disposable cans, plastic bottles, low-voltage switches, instruments and meters, paper towels, packaged food, tooling plates, etc.
Examples of industries of application include industrial manufacturing, electrical/electronic industries, automotive, logistics industries, cosmetics, food & beverage, packaging, etc.
This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

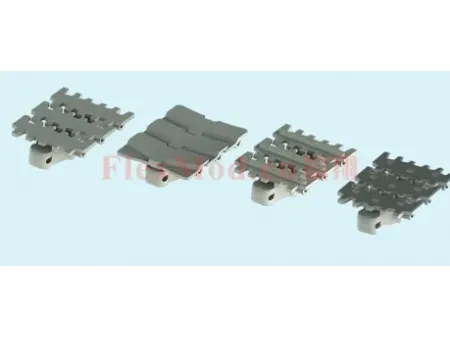

Conveyor chains

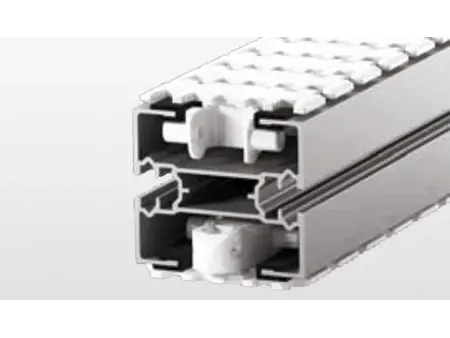

Conveyor beam

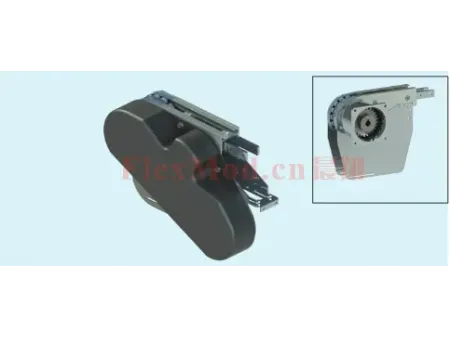

End drive units

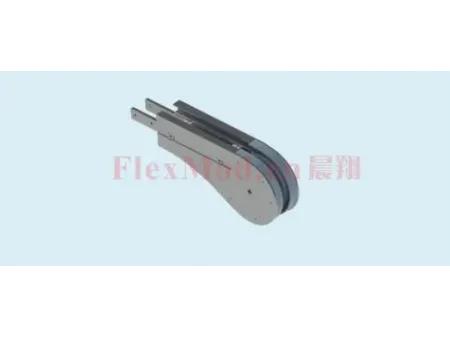

Idler end unit
