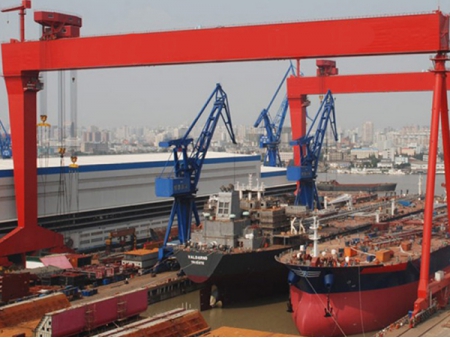

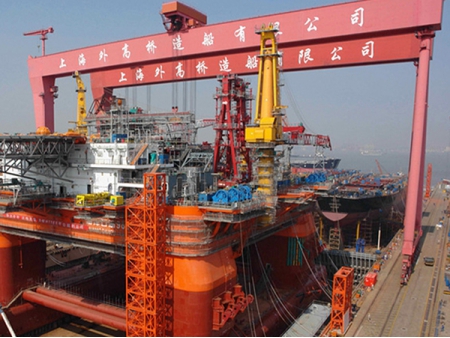

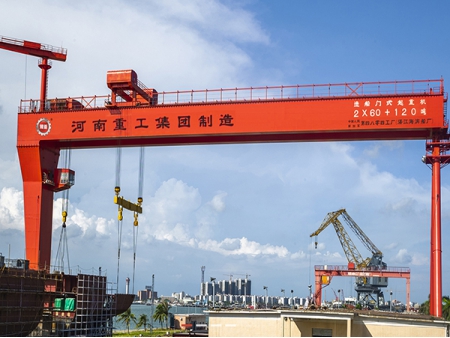

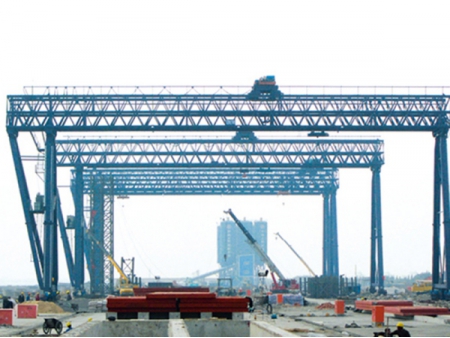

Shipbuilding gantry cranes are specially used for the transportation and docking of debris in docks (or berths). They have the characteristics of large lifting capacity, large span, high work efficiency and multiple functions. This crane equipment has a variety of functions such as lifting, pneumatic steering. It has two forms of single-beam and double-beam gantry, as well as rigid legs of one-column and double-post gantry.

Specification
Lifting capacity 2x25t 100t 2x75t 100t 2x100t 160t 2x150t 200t 2x400t 400t
Total lifting capacity 150t 200t 300t 500 1000
Span 50m 70m 38.5m 175 185
Max. wheel load 260kN 320kN 330kN 700 750
Total power 400kW 530kW 650kW 1550 1500
Span 40~180m
Lifting height 25~60m
Working class A5
Power source 3-phase AC 380V50Hz or as required
Features
  • The cost is lower, which can reduce the cost of plant construction
  • High working efficiency
  • Wide application scenarios
  • Stable performance, simple and convenient daily maintenance
  • Safe and reliable
