AS-C01 Wrap-around Labeling Machine Manufacturer

AS-C01 Wrap-around Labeling Machine

Request a Quote

View All: http://labelingsolution.com/1-1-as-c01-wrap-around-labelling-machine.html

The wra¬p-around labeling machine is designed for the application of partial or full wrap labels on round bottles and cylindrical containers with diameters ranging from 25mm to 100mm.
The machine has a labeling speed of 120pcs/min.

Applications

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: products with round surfaces
Applicable industries: food, pharmaceutical, cosmetics, daily chemical, electronics, hardware, plastic, etc.

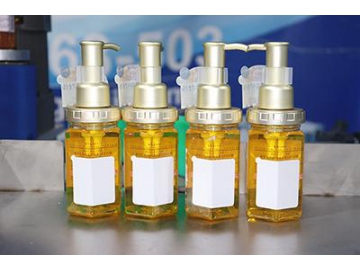

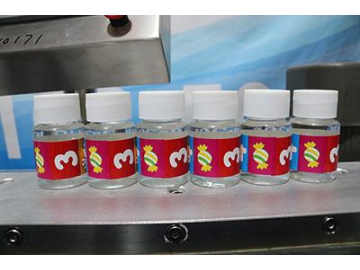

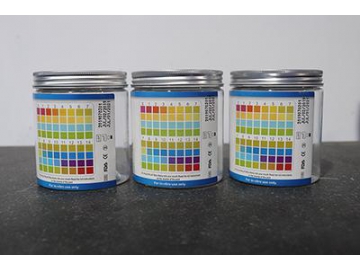

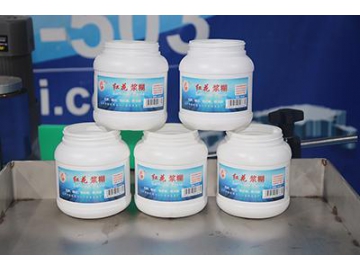

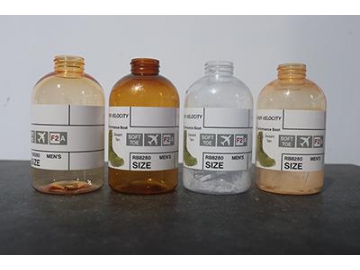

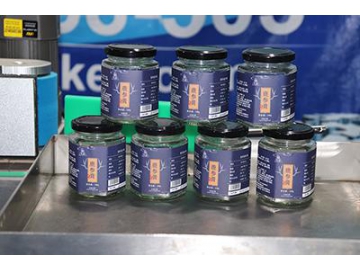

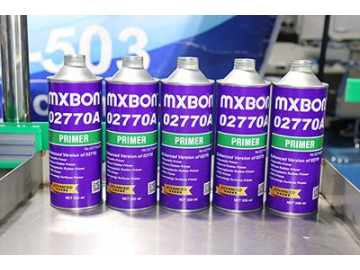

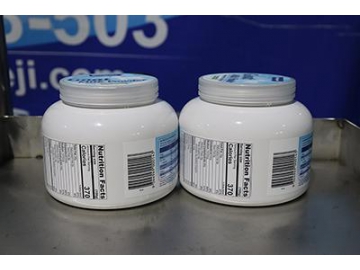

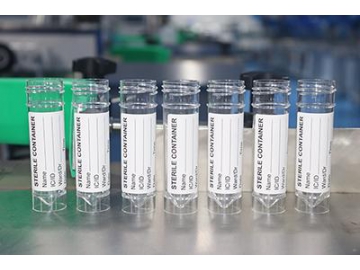

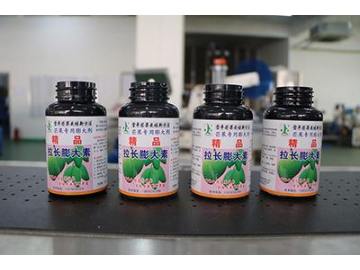

Samples

Options

Optional automatic rotary bottle unscrambler
The wra¬p-around labeling machine can be integrated in your production line to realize automatic container feeding to maximize output and label quality.
Ribbon printer is optional.
The machine can print the production date and batch number in-line to simplify the packaging procedures and improve overall production efficiency.

Specification

Model	AS-C01
Label stop accuracy	±1mm
Production speed	30-120 pcs/min
Product diameter	φ25mm～φ100mm
Product height	25mm～300mm
Label length	20mm～310mm
Label roll inside diameter	Φ76mm
Label roll outside diameter	Φ280mm
Dimensions (length x width x height)	1950mm x 1100mm x 1280mm
Weight	185Kg

Details of Wrap-Around Labeling System

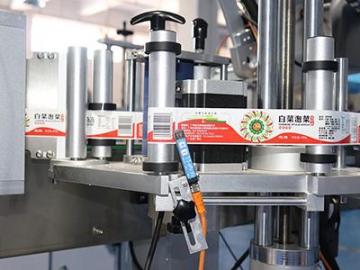

Photoelectric sensor:
High precision and reliable Sick brand photoelectric sensor

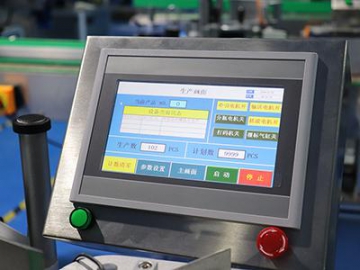

Touch screen:
It is controlled by PLC. The interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs.

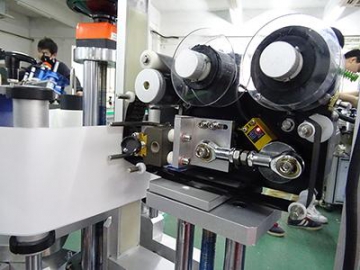

Coding machine:
It can print information such as batch numbers on the labels during the labeling process.

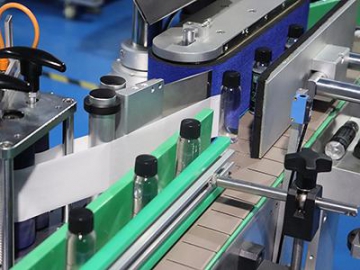

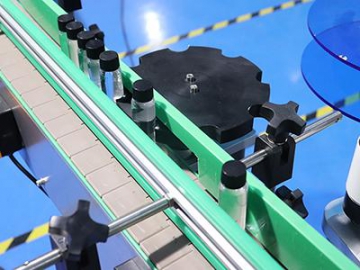

Bottle dividing mechanism:
It controls the speed of the motor to create appropriate gaps among the bottles to ensure each bottle has sufficient labeling time.
Smoothing device:
It guarantees perfect label adhesion to the surface of the container and eliminates bubbles by means of exerting pressure on either side of the container.
Label adjusting mechanism:
Label position, height, and angle can be adjusted by the label adjusting mechanism. It enables the label to be applied to bottles of different shapes with high accuracy.
