DLTB Series
Automatic labeler for applying labels to round bottles or cylindrical packages
- Up to 400 Bottles Per Minute
- Ø30 to 80 mm Bottle Diameter

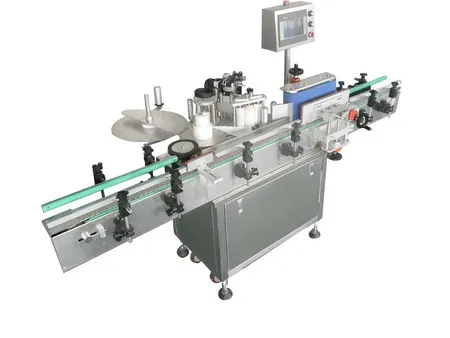

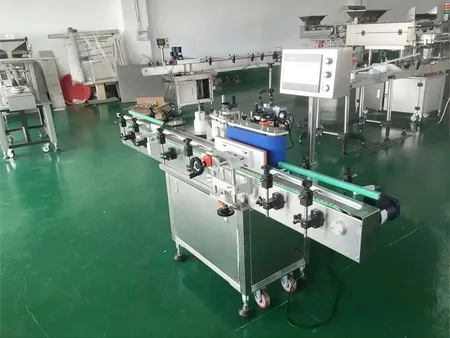

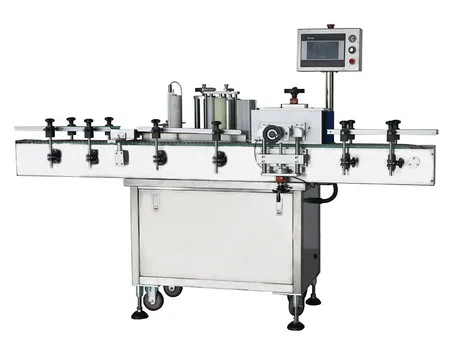

Wrap Around Labeling Machine
Request a Quote
Pharmaceutical Machinery
Packaging EquipmentThe wrap around labeling machine is designed for precise labeling of cylindrical containers. Its high-speed and stable labeling system minimizes vertical displacement during labeling, ensuring consistent and accurate application. Equipped with a highly sensitive photoelectric sensor and intelligent length confirmation system, it guarantees uniform label dispensing. The integrated multi-detection system ensures smooth operation, automatically stopping in cases of bottle absence or blockages and resuming seamlessly after resolution. Changing specifications is simple and convenient, making it adaptable to various production needs.
Optional features include code clarity detection, barcode and QR code inspection, and label application confirmation. This labeling machine is ideal for industries such as pharmaceuticals, cosmetics, food, and beverages, providing high-speed and accurate labeling solutions for diverse production needs.
Key features
- Features a correction mechanism for stable performance and high labeling accuracy, ensuring labels are applied evenly without wrinkles or bubbles
- Labeling, conveyor, and bottle separation speeds can be infinitely adjusted to suit specific production requirements.
- Constructed with a three-bar adjustment mechanism that utilizes triangular stability, ensuring long-lasting durability and reliable operation.
- Utilizes globally recognized brands for PLC, touchscreen, motor, and sensors, ensuring reliable performance and a high safety factor
- Includes smart features like no-bottle-no-labeling, automatic label correction, and label absence detection. Fault alarms, production counters, and parameter protection (with user-level management) enhance functionality
- Comes with detailed instructions on structure, principles, operation, maintenance, and upgrades to ensure smooth operation
Specifications
| Model | | | |
| Applicable Bottle Diameter | Ø30-80mm | ||
| Applicable Bottle Height | 50-200mm | ||
| Label Length | 15-200mm | ||
| Label Height | 15-150mm | ||
| Max. Production Capacity | 150BPM | 250BPM | 400BPM |
| Labeling Accuracy | ±1mm | ||
| Machine Weight | 150kg | 150kg | 200kg |
| Power | 500W | 500W | 800W |
| Power Supply | 1P 220V /50-60Hz | ||
