Ice Packaging Machine with 2 Head & 3 Head Linear Weigher, SK-L780
Request a Quote
View All: http://packaging-provider.com/1-9-3-ice-oackaging-machine-with-2-head-3-head-linear-weigher.html
Vertical form-fill-seal ice packaging

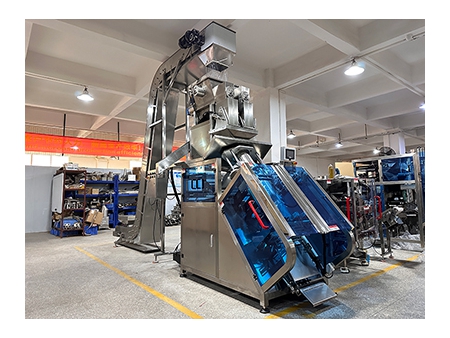

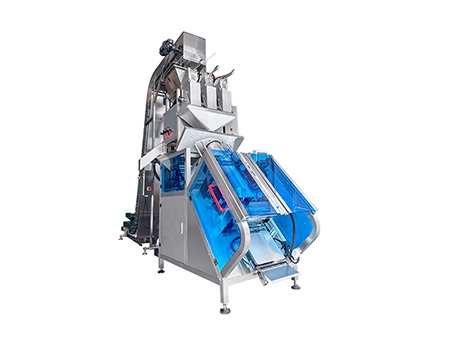

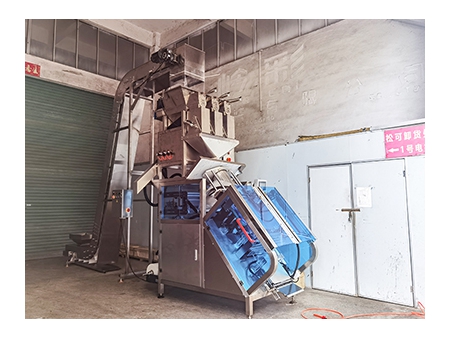

Ice Packaging Machine with 2 Head Linear Weigher

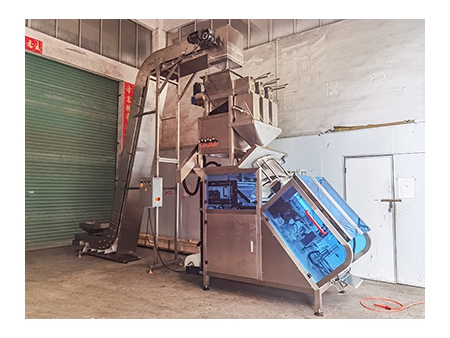

Ice Packaging Machine with 3 Head Linear Weigher
- Weight range: 5-10kg/bag
- Packaging speed: approx. 5-10bags per minute (line speed, depending on weight of each bag
- Bag type: back seal bag
- Bag material: composite film, PE film
Applicable Products
- Crushed ice
- Square cube ice
- Flake ice
- Tube ice
Packaged Products
- 5kg ice packaging
- 10kg ice packaging
Technical Parameters of Ice Packaging Machine (Main Machine)
| Model | SK-L780 |
| Max. film width | 780mm |
| Weight range | 5-10kg |
| Bag width range | 200-380mm |
| Bag length range | 100-750mm |
| Packaging speed | 5-55 bags/min (depending on product and packaging weight) |
| Bag material | Composite film, PE film |
| Bag type | Back seal bag |
| Dimensions (L*W*H) | 2500*1400*2015mm |
| Machine weight | 700kg |
| Power supply | 220V 50/60HZ, 4kW |
| Air consumption | 0.65MPa, 2.5m³/min |
Features
- The fully automated process, which includes bag forming, filling, sealing, and cutting, is completed in a single streamlined operation.
- The SOONKPACK attachments prevent bags from sticking to the forming equipment during film transport, ensuring a smoother packaging process for ice blocks and granules.
- The innovative sealing technology enhances the appearance and durability of the package seals.
- Our custom-designed dual-head screw weighers guarantee precise measurement and consistent ice packaging.
- We offer flexible configuration options, including dual-head or triple-head weighers, to meet the specific requirements of our clients.
- SOONK has nearly a thousand ice packaging clients and is therefore well-positioned to understand their challenges and needs. We continuously upgrade and improve our equipment to ensure greater functionality and adaptability.
- Date coding machine
- Photoelectric sensor
- Bag forming & transverse sealing unit
- Transverse sealing unit
- Film transport device
- Water removal device
- Touch screen control
- Support plate
If you want to know more about this VFFS machine, don't hesitate to contact us!
