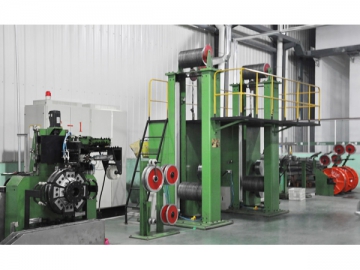

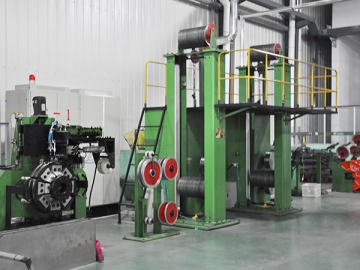

Hexagonal Bead Winding Line
Request a Quote
View All: http://huahanmachine.com
Specifications
Nominal Bead Range | 15" -25" (Single station 33" -51" ) | |
Maximum Ribbon Width (mm) | 30 | |
Strands of Bead Wire | 14 | |
Line Speed (m/min) | 380 | |
Rotating Speed (rpm) | 200 | |
Screw Diameter of Cold-Feed Extruder (mm) | 65 | |
L/D Ratio | 12:1 | |
Compression Ratio | 1:1.06 | |
Valid Storage Length (m) | 140 | |
Overall Dimensions (mm) | L | 13,350 |
W | 3,050 | |
H | 3,500 | |
Gross Weight (t) | 10 |
