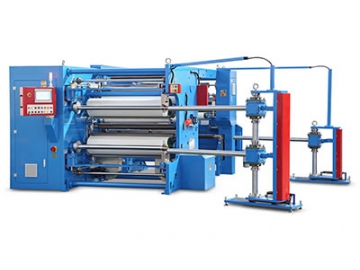

Duplex Slitter Rewinder, with Peel-Off Roller, LFS325 Manufacturer

Duplex Slitter Rewinder, with Peel-Off Roller, LFS325

Request a Quote

View All: http://converting-equips.com/1-9-high-speed-film-slitting-machine.html

Web width: 1000/1300mm
Max. unwind diameter: φ800mm
Max. rewind diameter: φ600mm
Entrapped air removal rewind diameter: φ450mm
Machine speed: 100m/min
Slitting method: razor blade, circular shear cutter, rotary knife (optional)

Applications

Entrapped air removal rewinding and slitting for protective films of various substrates

Features

High automatization level, ergonomic design;
Large-diameter single-layer protective film rewinding with entrapped air removal, suitable for coating layer with low to high viscosity;
Closed-loop tension control, real-time PLC control;
Configured with release film rewind station, enabling the release film to be reusable and lowering the cost;
The surface of guide rolls is specially treated, and fitted with rubber layer to form an anti-stick surface;
Upper loading structure prevents secondary contamination, static elimination ensures smooth rewinding;
Horizontally adjustable contact rollers, servo motor control;
