Request a Quote

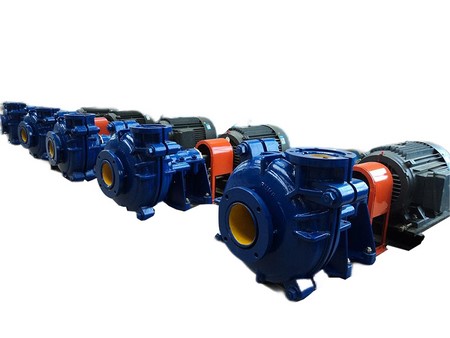

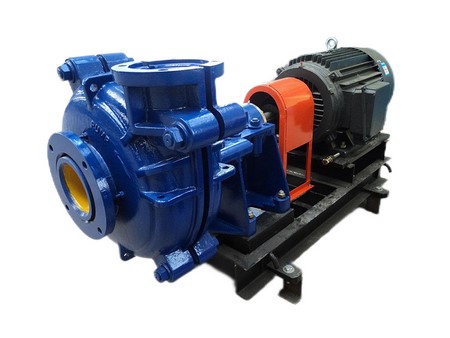

Horizontal pump for handling abrasive solids

Heavy duty slurry pump is designed to transport slurry containing solid particles, thus having high requirements on wear resistance. It is ideal for conveying highly abrasive and high-concentration slurries in coal preparation plants, metal mines for fine ores, tailings treatment, combined bottom ash in thermal power plants, and fly ash handling, etc.

  • Capacity: 3.6-5400m³/h
  • Head: 5-57m
  • Speed: 200-3800r/min
  • Power: 2.2-1200kW
Features
  • Long bearing life, with large diameter shaft and short overhang for bearing components.
  • Wear-resistant wet parts, made of molded rubber. They are fully interchangeable with metal wet parts.
  • Easy adjustment of the impeller, with the impeller adjustment mechanism located below the bearing housing.
  • Available options for impeller sealing, including gland packing, stuffing box seal, and mechanical seal.
  • High wear resistance
  • High efficiency, low energy consumption
  • Easy and quick installation and maintenance

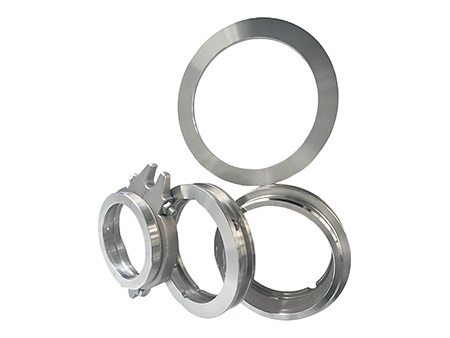

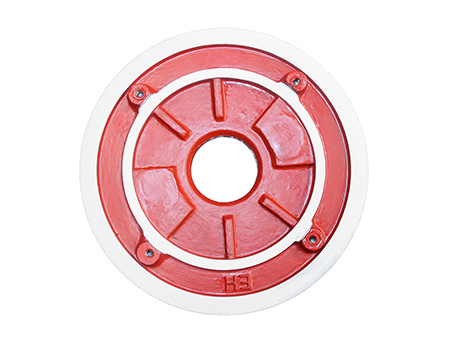

Pump Parts

Hongchang is a professional enterprise specializing in the production of slurry pumps and slurry pump parts. We have the complete production capability from modeling to finished products.

Specifications

1.5x1B-HC

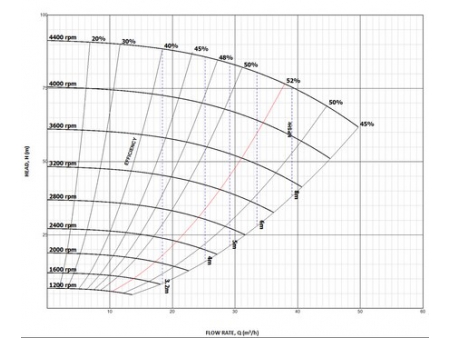

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
15 kW 3.6-21.6 m³/h 5-69 m 1200-3800 r/min 40% 2-4 m 152 mm 2.2-15 kW
Pump
  • Suction: 38mm
  • Discharge: 25mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 152mm
  • Material: metal
Frame: Type B (Max. power 15 kW)
Seal: gland seal

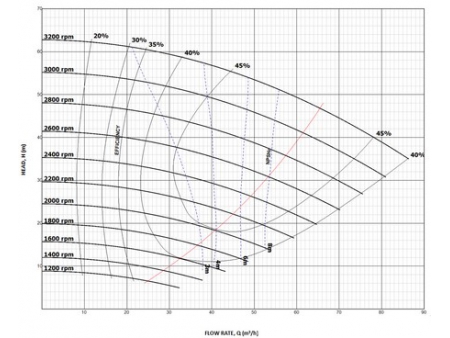

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
15 kW 7.2-48.6 m³/h 7-61 m 1200-3200 r/min 45% 3.5-8 m 184 mm 1.5-15 kW
Pump
  • Suction: 51mm
  • Discharge: 38mm
Impeller
  • Type: open
  • Vanes: 5
  • Diameter: 184mm
  • Material: metal
Frame: Type B (Max. power 15 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
30 kW 21.6-88.56 m³/h 13-62.3 m 1300-2700 r/min 55% 4-6 m 214 mm 4-30 kW
Pump
  • Suction: 76mm
  • Discharge: 51mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 214mm
  • Material: metal
Frame: Type C (Max. power 30 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
30 kW 28.8-158.8 m³/h 7.6-44 m 1000-2000 r/min 71% 4-6 m 245 mm 5.5-30 kW
Pump
  • Suction: 102mm
  • Discharge: 76mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 245mm
  • Material: metal
Frame: Type C/D (Max. power 30/60 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
60 kW 28.8-158.4 m³/h 7.6-44 m 1000-2200 r/min 71% 4-6 m 245 mm 5.5-55 kW
Pump
  • Suction: 102mm
  • Discharge: 76mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 245mm
  • Material: metal
Frame: Type C/D (Max. power 30/60 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
60 kW 72-331.2 m³/h 12.6-48 m 800-1480 r/min 65% 5-8 m 365 mm 15-55 kW
Pump
  • Suction: 152mm
  • Discharge: 102mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 365mm
  • Material: metal
Frame: Type D/E (Max. power 60/120 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
120 kW 93.6-385.2 m³/h 21.7-63 m 1050-1600 r/min 65% 5-8 m 365 mm 22-115 kW
Pump
  • Suction: 152mm
  • Discharge: 102mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 365mm
  • Material: metal
Frame: Type D/E (Max. power 60/120 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
120 kW 252-1087 m³/h 14.6-43 m 600-900 r/min 73% 4-10 m 549 mm 11-115 kW
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 686mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
120 kW 126-720 m³/h 10-58 m 500-1100 r/min 72% 2-9 m 510 mm 11-115 kW
Pump
  • Suction: 203mm
  • Discharge: 152mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 510mm
  • Material: metal
Frame: Type E (Max. power 120 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
300 kW 208.8-594 m³/h 32.8-62 m 900-1140 r/min 72% 2-9 m 510 mm 110-185 kW
Pump
  • Suction: 203mm
  • Discharge: 152mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 510mm
  • Material: metal
Frame: Type E (Max. power 120 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
300 kW 295-1267 m³/h 21.4-57.9 m 730-1050 r/min 70% 4.5-8 m 549 mm 75-280 kW
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 686mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
560 kW 206-1051 m³/h 11.5-46 m 400-730 r/min 71% 4-10 m 686 mm 45-320 kW
Pump
  • Suction: 254mm
  • Discharge: 203mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 686mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
560 kW 316-730 m³/h 10.2-54 m 350-730 r/min 82% 6 m 762 mm 45-380 kW
Pump
  • Suction: 305mm
  • Discharge: 254mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 762mm
  • Material: metal
Frame: Type F (Max. power 260 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
560 kW 504-2455 m³/h 13.5-60 m 300-585 r/min 77% 3-10 m 965 mm 55-480 kW
Pump
  • Suction: 356mm
  • Discharge: 305mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 965mm
  • Material: metal
Frame: Type F/ST (Max. power 260/560 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
1200 kW 1368-3060 m³/h 11-63 m 250-550 r/min 79% 4-10 m 1067 mm -
Pump
  • Suction: 406mm
  • Discharge: 356mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 1067mm
  • Material: metal
Frame: Type G/TU (Max. power 600/1200 kW)
Seal: gland seal

Allowable Max. Power Capacity Head Speed Efficiency η NPSH Impeller Diameter Motor Power Rang
1200 kW 2520-5400 m³/h 13-57 m 200-400 r/min 85% 5-10 m 1370 mm -
Pump
  • Suction: 508mm
  • Discharge: 457mm
Impeller
  • Type: closed
  • Vanes: 5
  • Diameter: 1370mm
  • Material: metal
Frame: Type G/TU (Max. power 1200 kW)
Seal: gland seal
Applications
  • Continuous pumping of highly abrasive and dense slurries, such as hydraulic cyclone feed regrinding, flotation, and tailings.
  • Mineral processing in mines (gold, copper, iron, molybdenum, etc.)
  • Tailings transport
  • Ash removal in power plants
  • Flue gas desulfurization in power plants
  • Coal washing in coal plants
Looking for a heavy duty sludge pump that won't clog or fail?

Hongchang heavy-duty slurry pump is designed with efficiency in mind, maximizing production while optimizing energy consumption. By minimizing operational costs, it not only helps improve you profit but also contributes to a more environmentally friendly and sustainable industrial operation. Its efficient design allows for continuous operation, reducing maintenance and providing consistent products.

We understand the importance of easy maintenance and operation, which is why our heavy-duty slurry pump features a user-friendly design. With accessible components and an intuitive interface, daily maintenance tasks become simple and understandable.

The pump excels in its ability to transport materials seamlessly, even under the most challenging conditions. Whether you're handling gravel, coal, ore, or other abrasive substances, this pump ensures excellent performance, maximizing productivity and minimizing downtime.

Safety is of utmost importance in any industrial environment, and our heavy-duty slurry pump design incorporates comprehensive safety features. It complies with industry standards, providing peace of mind and safeguarding personnel and equipment. With its robust structure and advanced safety measures, you can rely on this pump's outstanding performance without compromising safety.

FAQs

Hongchang slurry pump is designed with a spacious flow path, allowing for the passage of high-density slurries without clogging, ensuring an extended lifespan and lower maintenance costs.

When selecting a slurry pump for specific applications, they can be categorized into two types based on their product positioning: vertical pumps and horizontal pumps.

Slurry pumps are used in various applications such as handling highly abrasive slurries, iron ore and tailings, mineral processing, coal handling, granite and marble slurries, desilting, and they find application in dam and pressure pipeline tunnels.
