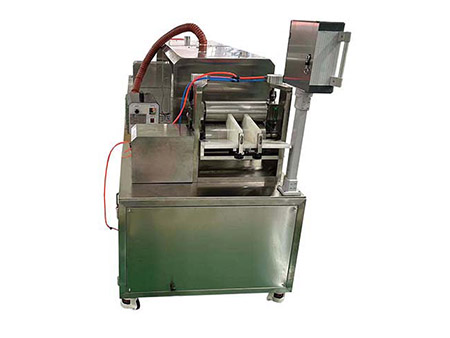

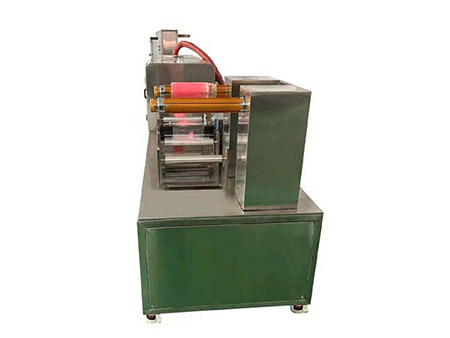

Oral Dissolving Film Making Machine
Model: PPD-ODF300
Coating width: 300mm (max.)
Coating thickness: 0.02-0.1mm
Coating speed: 0.01-1m/min
Substrate in roll: width: 360mm, O.D.≤350mm, I.D.: 76mm
Voltage: 380V 50Hz
Power: 1.5kW (motor), 16kW (heating)
Air source: 0.6-0.8Mpa

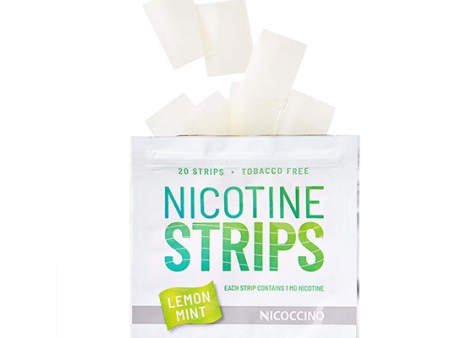

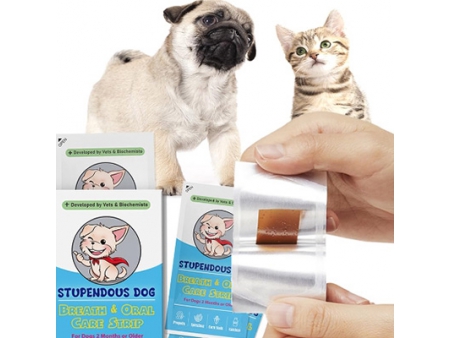

The machine is used for manufacturing various types of oral dissolving film (oral soluble film /oral stamp/oral instant film/mint strip/ODF/OTF) which can be tadalafil oral dissolve film, nicotine oral strip (nicotine oral strip/cigarettes smoking oral film), and fresh breath oral strips for dogs & cats (pet breath & oral care strip). Comparing with oral solid dosage (OSD), the oral dissolving film can be dissolved in the mouth within a few seconds, which is very convenient to use.
This oral dissolving film making machine features high level of automation, and easy operation.
- The oral dissolving film production equipment is designed with PLC control system, and servo control for smooth operation in a precise manner.
- Adopting differential rewind shaft ensures more accurate control during rewinding.
- It’s designed with a hot air circulation drying system and segmented temperature control.
- The ODF film making machine comes with a high accuracy metering roller.
- Featuring an automatic liquid dosage delivery system, the liquid level can be automatically detected. Liquid dosage delivery will be immediately triggered when it’s lower than the liquid level.
