OZM340-10M

OZM340-10M is a manufacturing machine primarily used to produce both oral thin films and transdermal patches. It is currently the oral thin film & transdermal patch making machine with the highest output which is three times the conventional medium-scale production equipment. This transdermal patch manufacturing equipment is appropriate for the healthcare, cosmetics, and pharmaceutical industries to make thin film-like materials by placing laminated film on top of liquid components that are laid out uniformly and flatly on the bottom film.

Our oral thin film & transdermal patch making machine complies strictly with "UL" safety standard and "GMP" regulation of the pharmaceutical industry, and uses frequency conversion speed regulation and integrated automatic control system for mechanical, electrical and pneumatic components. This thin film making machine combines functions of laminating and hot air drying, the parameters can be easily adjusted by PLC control panel. Other functions like slitting and web guiding can be added to fit specific needs.

ALIGNED MACHINERY will offer professional technical support and after-sales service for this oral thin film & transdermal patch making machine. Our technical staff can go to customer's plant for on-site commissioning, technical guidance and staff training.

Oral Thin Film & Transdermal Patch Making Machine Introduction

Technical Specifications

Production	Parameters
Web width	280mm
Roller surface width	350mm
Machine speed	1m-2.5m/min (depending on the actual material and status)
Unwinding diameter	≤Ø350mm
Rewinding diameter	≤Ø350mm
Heating and drying method	Built-in hot air drying, centrifugal fan hot air exhaust
Temperature control	Room temperature to 99℃ (±2℃)
Edge thickness	±1.0mm
Power	60kW
Machine dimensions	900016202050mm
Voltage	380V 50HZ

Performance & Features

Suitable for laminating of paper, film, and metallic film coating; the entire machine adopts frequency converter stepless speed regulation system, and unwinding unit uses magnetic powder brake tension control;
The transdermal patch making machine is constructed with a structure consisting of main body and multiple modules, each of which can be independently disassembled and assembled by using positioning pins and fastening screws;
Automatic working time recording and speed display;
Drying chamber is located in an independent section, with automatic control of temperature, humidity and concentration, ensuring high efficiency production;
The lower conveying section and upper operation section are completely isolated from one another using stainless steel plates, thus effectively preventing cross-contamination between the two sections while making cleaning task easier;
All parts in contact with the materials are made of stainless steel and non-toxic materials, such as pressing roller and drying tunnel, satisfying the requirements of "GMP" standard; all electrical components and wiring circuits are compliant with "UL" safety standard;
Emergency stop safety device ensures the safety of operator during the commissioning and mold changing operations;
The transdermal patch making machine carries out a smooth production process including unwinding, coating, drying, laminating and rewinding;

Details of Work Stations

Film Making Section

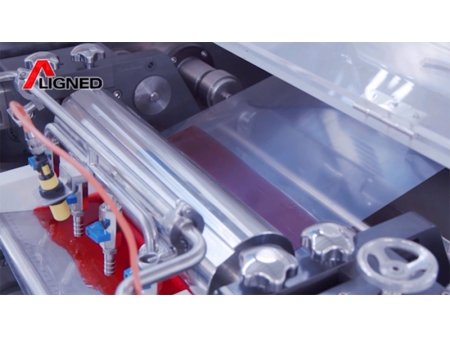

- The film making station adopts automatic scraper unit, enabling the coating layer uniform and smooth;
- Materials are automatically loaded by peristaltic pump;
- The coating width can be easily adjusted, effectively avoiding the waste of raw materials;
- The thickness of finished film is adjustable thanks to the servo system, it can be achieved by simply inputting the thickness via touch screen;
Unwinding & Rewinding Section
- Air expanding shafts are used for film roll positioning, giving operator an exceptional convenience for film roll changing;
- Tension control system is configured to maintain the tension of the film;
- Web guiding system is available to ensure that the film is well positioned during operation;
Drying Section

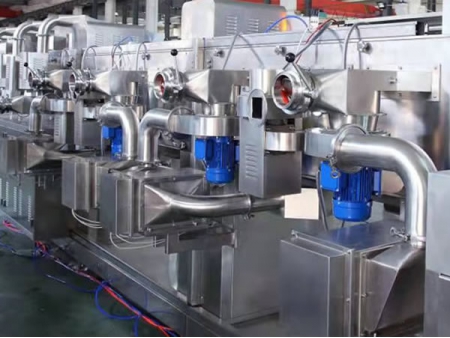

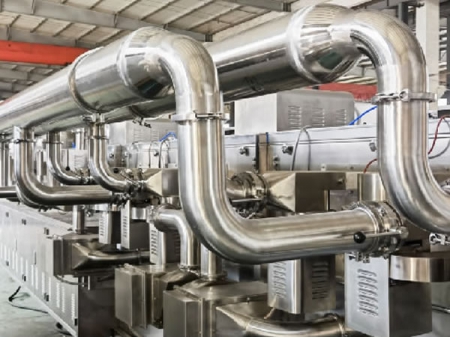

- Independent modular drying section can be designed and manufactured with customer-specific length, the maximum drying speed can reach 2.5m/min;
- Built-in sensors for temperature, humidity and solvent concentration are equipped, and PID control is achieved by PLC system, ensuring the stability and safety of the internal environment;
- Built-in H14 HEPA high-efficiency filter ensures that the heated air complies with GMP requirements;
- Safety protection door is equipped to assure the safety of operators when they are working., and also prevent the heat from influencing the workshop temperature while lessening the heat loss;
HMI Interface
- 15-inch touch screen, with data backup/restoration function, IP54 protection grade;
- Three-level password protection, graphical representation of entire machine allows operator to easily control each station;
- Functions of electronic signature and audit trail are available, in compliance with the requirements of FDA;
