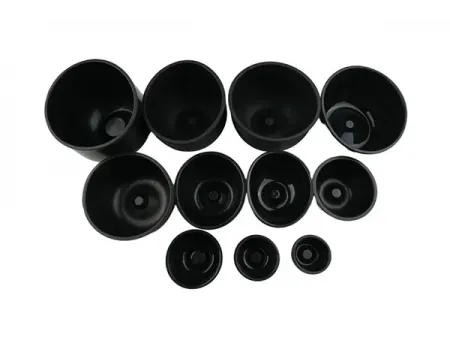

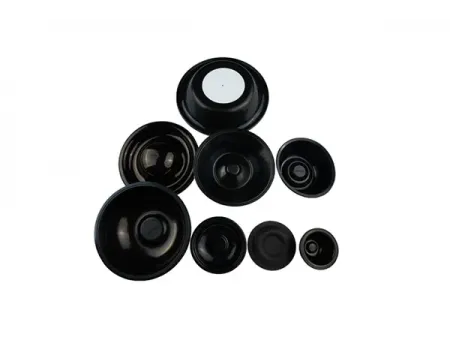

Rubber Diaphragms
Design and Production of Industrial Rubber Components

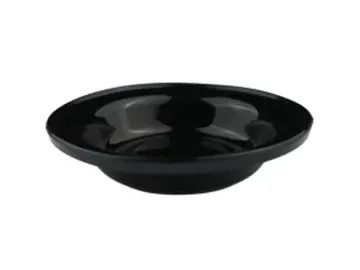

We provide customized flat diaphragms, convoluted diaphragms, dish-shaped diaphragms, and rolling diaphragms for diverse applications
- Resistance to extreme conditions: Performs reliably in extreme environments from low temperatures (-10°C to -70°C) to high temperatures (100°C to 300°C).
- High durability and longevity: Service life from 200,000 to 12 million cycles.
- Impact and chemical resistance: Excellent resistance to shock, strong acids, strong alkalis, and abrasion.
- Available materials: Custom rubber formulations, rubber composite, engineered rubber, styrene-butadiene rubber (SBR), ethylene propylene diene monomer (EPDM), chloroprene rubber (CR), hydrogenated nitrile rubber (HNBR), nitrile butadiene rubber (NBR), chlorinated ether rubber (ECO), and other advanced formulations.
Available Specifications
(Size: Diameter×Height)
Size: Ø114×24mm
Part No.: 86634003
Factory code: SN901119
Size: Ø99×22mm
Part No.: 86723764
Factory code: SN901156
Size: Ø88×20mm
Part No.: 86633922
Factory code: SN901118
Size: Ø114×24mm
Part No.: 86633963
Factory code: SN901117
Size: Ø114×17mm
Part No.: 86634003
Factory code: SN901120
Size: Ø115×31mm
Factory code: SN901159
Size: Ø100×36mm
Part No.: 31152472-00
Factory code: SN901178
Size: Ø55×108mm
Part No.: 3115192602
Factory code: SN901107
Size: Ø100×62mm
Part No.: 311518220
Factory code: SN901109
Size: Ø100×58mm
Part No.: 31152472-00
Factory code: SN901108
Size: Ø118×20mm
Part No.: 04114808
Factory code: SN901132
Size: Ø112×15.5mm
Part No.: 09260298
Factory code: SN901168
Size: Ø99×62mm
Part No.: 311518220
Factory code: SN901109
Size: Ø120×75mm
Part No.: 15235798
Factory code: SN901112
Size: Ø99×65mm
Part No.: 3201195384
Factory code: SN901164
Size: Ø84×53.4mm
Part No.: 3115359300
Factory code: SN901125
Size: Ø119×32.5mm
Factory code: SN901162
Size: Ø116×26mm
Factory code: SN901146
Size: Ø104×29mm
Factory code: SN901127
Size: Ø109×37.6mm
Factory code: SN901126
Size: Ø75×25mm
Factory code: SN901148
Size: Ø89×20mm
Factory code: SN901123
Size: Ø127×65mm
Factory code: SN901121
Size: Ø115×21mm
Factory code: SN901144
Size: Ø113×22mm
Factory code: SN901113
Size: Ø75×33mm
Factory code: SN901106
Size: Ø100×35mm
Factory code: SN901101
Size: Ø111.5×22mm
Factory code: SN900140
Size: Ø110×18mm
Factory code: SN900125
Size: Ø117×27mm
Factory code: SN901146
Size: Ø92×18.4mm
Factory code: SN901165
Size: Ø113×64mm
Factory code: SN901170
Size: Ø132.5×28mm
Factory code: SN901145
Size: Ø109×37.6mm
Factory code: SN901126
Size: Ø117×27mm
Factory code: SN901146
Size: Ø125×22mm
Factory code: SN901131
Size: Ø132×23.5mm
Factory code: SN901103
Size: Ø85×15.5mm
Size: Ø125×25mm
Factory code: SN901143
Size: Ø170×20mm
Factory code: SN900138
Size: Ø160×80mm
Factory code: SN900170
Size: Ø240×60mm
Factory code: SN900178
Size: Ø196×35mm
Factory code: SN900139
Size: Ø178×35mm
Factory code: SN900150
Size: Ø97×16mm
Factory code: SN900187
Size: Ø170×35mm
Factory code: SN900128
Size: Ø185×50mm
Factory code: SN900137
Size: Ø165×45mm
Factory code: SN900164
Size: Ø157×70mm
Factory code: SN900169
Size: Ø144×65mm
Factory code: SN900165
Size: Ø100×17mm
Factory code: SN900131
Size: Ø192×40mm
Factory code: SN900133
Size: Ø205×45mm
Factory code: SN900134
Size: Ø165×35mm
Factory code: SN900163
Size: Ø150×40mm
Factory code: SN900127
Size: Ø190×40mm
Factory code: SN900129
Size: Ø160×35mm
Factory code: SN900174
Size: Ø265×75mm
Factory code: SN900148
Size: Ø260×50mm
Factory code: SN900153
Size: Ø144×65mm
Factory code: SN900160
Size: Ø160×80mm
Factory code: SN900170
Size: Ø200×90mm
Factory code: SN900162
Size: Ø289×57.8mm
Factory code: SN900157
Size: Ø81×46.8mm
Factory code: SN905108
Size: Ø62.2×40.2mm
Factory code: SN905114
Size: Ø54.1×39mm
Factory code: SN905112
Size: Ø138.4×76mm
Factory code: SN905109
Size: Ø135.2×88.5mm
Factory code: SN905116
Size: Ø151.2×108mm
Factory code: SN905123
Size: Ø95.7×52mm
Factory code: SN905117
Size: Ø135.2×70mm
Factory code: SN905115
Size: Ø105.8×61mm
Factory code: SN905110
Size: Ø119.5×66.4mm
Factory code: SN905125
- Graphene composite materials for temperature resistance
- Tear-resistant and wear-resistant modified rubber materials
- Gas-tight composite materials
- Low-temperature resistant composite materials
- Acid-resistant composite materials
- High fatigue-resistance materials
- Rubber diaphragm for furnace dismantling machines in steel plants
- Rubber diaphragm for hydraulic power units in marine applications
- Rubber diaphragm for rock drill machines
- Rubber diaphragm for wind power systems
- Rubber diaphragm for offshore and deep-sea equipment
- Rubber diaphragm for construction machinery
- Rubber diaphragm for agricultural machinery
- Rubber diaphragm for oil extraction equipment
- Major construction machinery manufacturers
- Aerospace component factory
- Strategic partnership agreements with South Korean companies
- Long-term cooperation with several Fortune Global 500 enterprises
- On-site contract signing with international partners
- Visit by experts from the Institution of Engineering and Technology (UK) to the Simker laboratory
- Joint R&D projects with German Industry 4.0 laboratories
- Joint R&D and technical collaboration with German laboratories
Talk to our experts to work out tailored rubber solutions for your industrial applications.
