This product has been discontinued and removed from our shelves.

The electric linear actuator, designed specifically for sun shading systems, combines elegance, style, and powerful functionality in a compact form. With a maximum outer diameter of just 38mm, its sleek structure integrates seamlessly into limited spaces.
The actuator can handle a maximum load of 2500N and offers customizable stroke and force options, providing versatile solutions for sun shading systems. Its high dust and water resistance levels, IP67M and IP69K, along with an aluminum oxide and 316 stainless steel outer tube, ensure adaptability to various climates and resilience against harsh weather conditions.
The actuator is easy to install, maintenance-free, and boasts stable performance with a low failure rate, backed by a 5-year warranty. Operating quietly at less than 56dB, ensuring a tranquil operation of sun shading systems, creating a comfortable atmosphere.

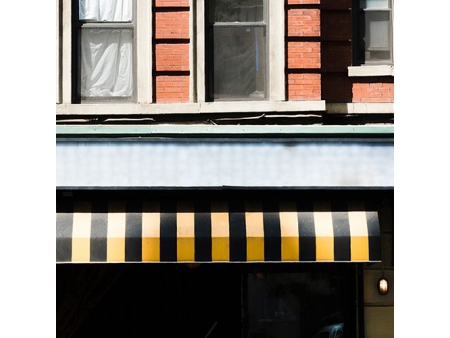

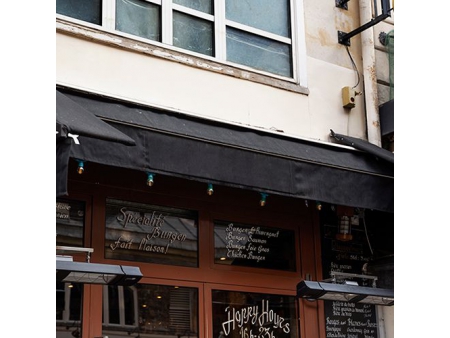

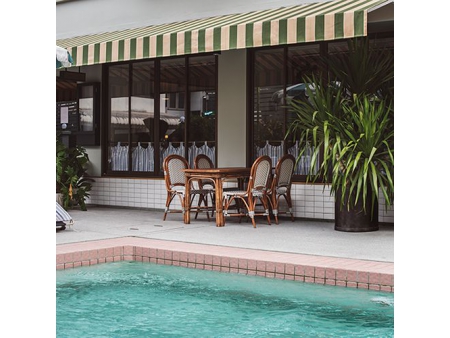

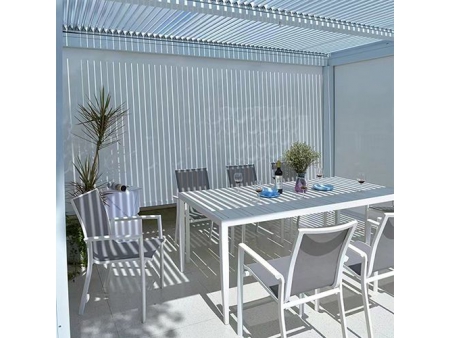

Applications

Specifications

Voltage	12VDC	24VDC
No-load current	≤1.2A	≤0.6A
Load current	≤3.8A	≤1.8A
Maximum power	50W
Stroke	20-400mm (special stroke length can be customized)
Limit switch	Built-in
Installation length	Stroke 300mm
Noise level	≤56dbB
IP level	IP67M/IP69K
Linear clearance	0.5-1mm
Optional configuration	Built-in current protection Built-in Hall sensor feedback Outer tube (aluminum) Outer tube (stainless steel)
Duty cycle (S2)	10%, work 2 minutes, rest 18 minutes
Service life	≥10000 cycles
Operating temperature	-20℃~60℃
Storage temperature	-40℃~70℃
Ball screw material	#45 Steel
Expansion tube material	SUS316
Standard color	Metallic color
Standard wire length	1.5m (Special length can be customized)
Certification	CE

Load and Speed

Dimensions

What We Can Customize

Performance Curves
