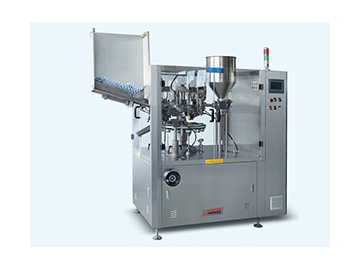

Automatic Tube Filler Sealer
The automatic tube filler sealer is equipped with a PLC programming controller and a full-color industrial touch screen, streamlining its operations. It's capable of automatically handling various tasks such as filling ointments, creams, gels, and other viscous fluids, as well as performing folding (sealing) and batch number printing (including the production date). This makes it a perfect choice for filling and sealing tubes made of lead, aluminum, plastic, or composite materials in industries like cosmetics, pharmaceuticals, food, and adhesives.
Technical Specifications| Model | ||
| Filling Speed (tube/min) | 60 | 80 |
| Filling Range (ml/tube) | 5-240 | 5-240 |
| Filling Accuracy | ≤士1% | 士1% |
| Diameter of Soft Tube (mm) | 10-50 | 10-50 |
| Length of Soft Tube (mm) | 50-210 | 50-210 |
| Tube Material | Plastic tube, laminated tube, ALU tube and lead tube | |
| Power Supply | 80V/220V(Optional) | |
| Working Air Pressure (Mpa) | 0.55-0.65 | |
| Motor Power (kW) | 1.1 | 1.5 |
| Heat Sealing Power | 3.0kW | |
| Overall Dimension (L×W×H) (mm) | 2000×950×1900 | 2200×1220×2400 |
| Machine Weight (kg) | 850 | 1300 |
As a professional high speed blister packaging machine manufacturer and supplier in China, we also offer medicine printer, double cone medicine mixer, single punch tablet press machine, and much more.
