Powder processing equipment for the production of battery anode materials

Ultrafine processing of materials like asphalt (pitch), carbon nanotubes, and carbon black often faces challenges like high energy consumption and inconsistent particle sizes. This dispersing machine combines grinding and classification into a single solution, making it ideal for handling lightweight powders while improving efficiency and precision.

Features
  • Achieves energy savings of over 40% compared to mechanical mills and 80% compared to jet mills when producing ultrafine products with D50<3μm
  • Precise cut points ensure that maximum particle sizes (D100) are 5-8μm finer than those from other milling systems, delivering better quality control
  • Reduces over-grinding, resulting in a narrow particle size distribution without contamination from oversized or undersized particles
  • Produces particles with high roundness, uniformity, and excellent tap density, ensuring consistency and quality in the final product
  • Low equipment wear allows for 24-hour continuous production with long-lasting components and minimal maintenance costs
  • The system's design minimizes material build-up, allowing for quick and easy cleaning when switching between different materials

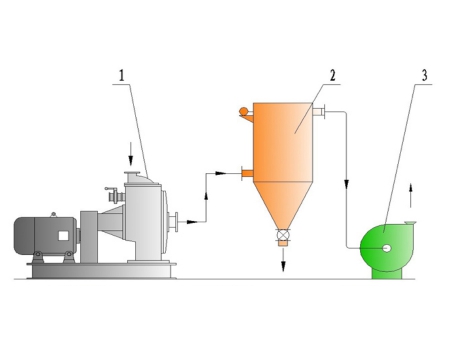

Process Flow

1. Classifying micronizer
2. Bag filter
3. Draft fan
