QVC Automatic Vacuum Feeding Machine
Request a Quote
View All: http://pharmacymachines.com

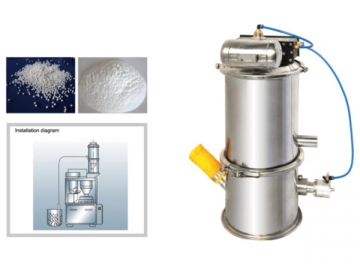

The QVC automatic vacuum feeding machine utilizes compressed air to realize material conveying. Requiring no mechanical type vacuum pump, the compressed air passes through the vacuum generator of the vacuum feeder, thus high vacuum environment is created. Thanks to the high vacuum, the material layering is fully avoided, ensuring the uniform mixing of the material.
Conforming to GMP, the automatic vacuum feeding machine is distinguished by simple structure, small volume, little maintenance, low noise, convenient control, and static elimination. This pharmaceutical machinery can be used for material feeding for tablet press, capsule filling machine, dry type granulator, packing machine, vibrating machine, etc.
Technical Parameters of Automatic Vacuum Feeding Machine| Model | QVC-1 | QVC-2 | QVC-3 | QVC-4 |
| Output | 350kg/h | 700kg/h | 1440kg/h | 2880kg/h |
| Air Consumption | 180L/min | 360L/min | 720L/min | 1440L/min |
| Power | 5W | 5W | 5W | 5W |
| Overall Dimensions | Ф140×560 | Ф213×720 | Ф290×850 | Ф420×1150 |
| Weight | 15kg | 20kg | 28kg | 40kg |
