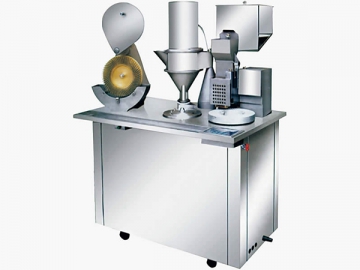

NJP4200 Automatic Capsule Filling Machine
Request a Quote
View All: http://pharmacymachines.com
The NJP4200 automatic capsule filling machine is a kind of intermittent motion capsule filling equipment designed with multiple tamping stations and stable performance. The pharmaceutical machinery is capable of completing capsule feeding, separation, filling, removal of defective capsule, locking, and discharging, automatically.
Scientifically designed, the enclosed rotary table of the automatic capsule filling machine has twelve stations and 3 rows 32 die holes. The capsule filler conforms to GMP and FDA standard, as well as other internationally advanced standards.
Specifications of Automatic Capsule Filling Machine| Productivity | 4200pcs/min |
| Size of capsule | 00#-5# |
| Power supply | 380V/50Hz, 3-phase 4-wire |
| Power | 10.5kW |
| Water supply | 500L/h, 0.2-0.10MPa |
| Dust collector capacity | 230m3/h |
| Overall dimensions | 1575×1283×(2120 250)mm |
| Weight | 3400kg |
| Filling percentage | ≥99.8% |
| Dosing accuracy | ≤±5% |
