Vertical Mast Lift, IMP-J Series

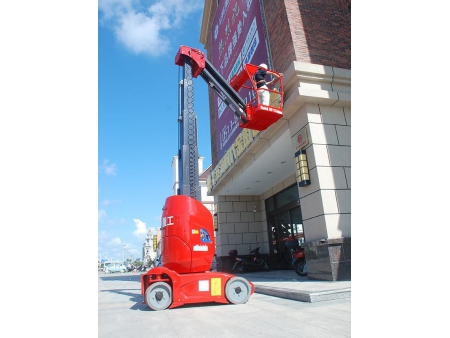

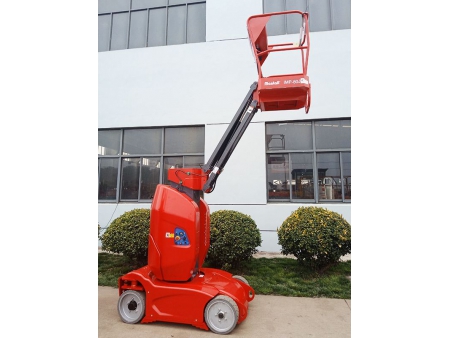

IMP-J series vertical mast lifts are an aerial work platform intended to provide access to high reaching tasks in narrow aisles and confined spaces. Built with compact and lightweight structure, these vertical mast lifts deliver an exclusive maneuverability and portability for vertical aerial operations. They also offer exceptional operational capability with a robust welded mast that is made of high strength alloy steel, providing maximum working height up to 10 meters and an outreach of 3.2 meters. Our IMP-J series vertical mast lifts are equipped with newly developed dual DC motor coupled with high torque reducer, ensuring less power consumption and greater torque for stable lifting and fast traveling. The streamlined design gives the vertical mast lift a superior look, distinguishing it from other similar aerial work platforms.
- Lifting capacity 200kg
- Standard platform with median sliding rod
- Auxiliary platform lowering System

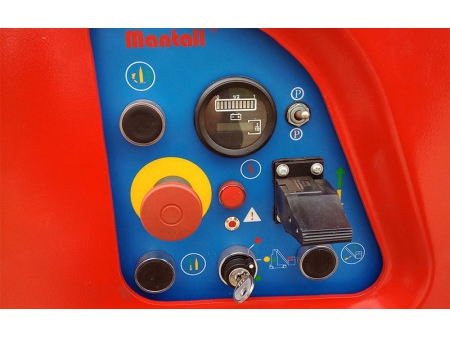

- Ground emergency lowering valve

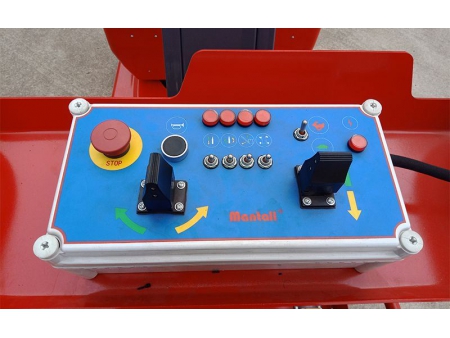

- Proportional raising and driving control
- Diagnosis system
- AC wiring to platform
- Lowering and tilt alarm
- Turn inter-radius is 0
- Double wheel brake
- Hydraulic brake release
- Fixed pothole guards
- The rear shield mounted with hinge, conveniently to close to all major electric and hydraulic components.
- Transportation fixed hole
- Wide forklift hole

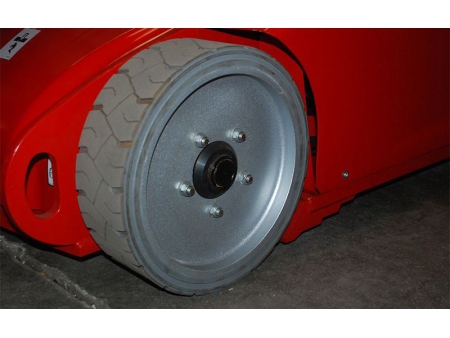

- Solid Non-marking tires
- Fiber glass platform
- Goods collection platform
- Motion alarm
- Tool box
- Platform positioning laser light
- Fluorescent tubes box
- Working flashing beacon
- Top limit protection auto-stop device
- Maintenance-free battery
- Equipment protection cover
- Can not be drive when charging
| Model | IMP80J | IMP100J |
| Max. working height H1 | 8m | 10m |
| Max. platform height H2 | 6m | 8m |
| Max. outreach | 3.15m | |
| Lift capacity | 200kg | |
| Platform size(L*W*H) | 0.91×0.85*1.14m | |
| Stowed size E*F*D | 2.76×0.99×1.99 m | |
| Wheelbase G | 1.2m | |
| Ground clearance H | 0.075m | |
| Ground clearance-deployed pothole | 0.025m | |
| Min. turning radius-(outside) | 1.82m | |
| Min. turning radius-(inside) | 0m | |
| Drive speed, stowed | 4.5km/h | |
| Drive speed, raised | 0.7km/h | 0.5km/h |
| Jib swing | -60°/ 60° | |
| Gradeability | 23% | |
| Max. Vertical tilt ° | 2.5° | |
| Power source | DC24V/240Ah | |
| Tire size | 406*125 mm | |
| Weight | 2800 kg | 2880 kg |
