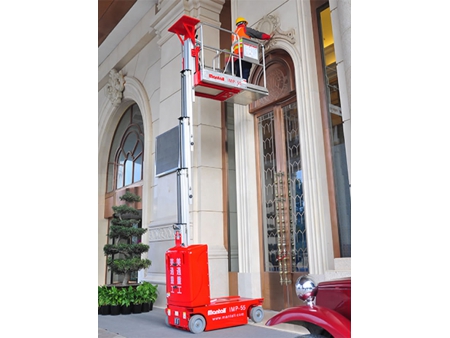

Vertical Mast Lift, IMP Series

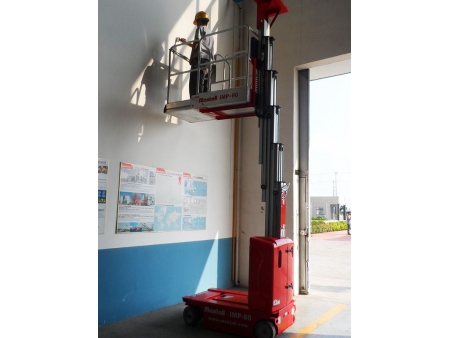

Mantall IMP series vertical mast lifts are a type of single mast self-propelled aerial work platforms that can improve your working efficiency and enhance productivity in the workplace. The compact structure and small size of this vertical mast lift make it easy to set up and pass through narrow aisles and doorways, offering a great convenience to your outdoor or indoor applications such as warehousing, inventory management, transporting, stock-picking, etc.
These vertical mast lifts are designed with zero inside turning radius that allows the aerial work platform to access tight and hard-to-reach spaces. 30% gradeability, a spring-applied hydraulically released brake system and 25cm non-marking solid rubber tires are also outstanding features that enable the vertical mast lift more stable and easy to drive and control for increased productivity.
- Emergency lower down
- The Platform entrance height for a minimum of 0.38 meters
- Proportional Raising and Driving Control
- Diagnosis system
- AC wiring to platform
- Lowering and tilt alarm
- Turn Inter-radius is 0
- Double wheel brake
- Hydraulic brake release
- Pothole guards

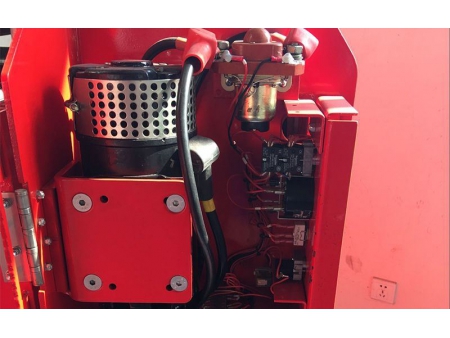

- The rear shield mounted with hinge, conveniently to close to all major electric and hydraulic components.
- Transportation fixing hole

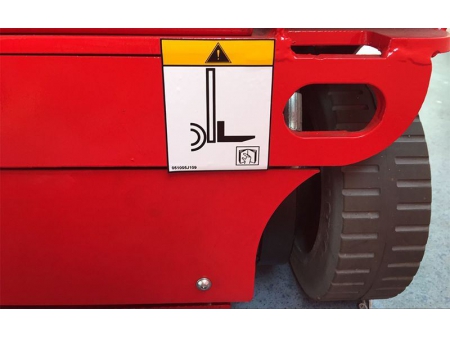

- Wide type forklift handling notch

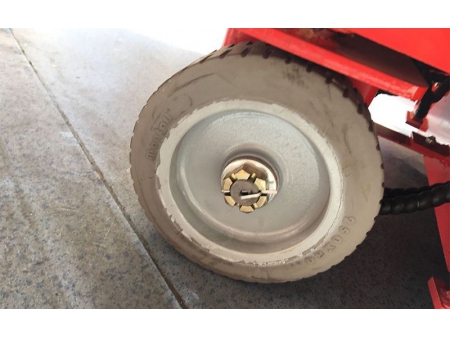

- Non-mark solid tire
- Extendable platform
- Fiber glass platform
- Goods collection platform
- Motion alarm
- Tool box
- Platform positioning laser light
- Fluorescent tubes box
- Working flashing beacon
- Top limit protection auto-stop device
- Equipment protection cover
| Models | IMP55 | IMP65 | IMP80 |
| Max. working height H1 | 5.5m | 6.5m | 8m |
| Max. platform height H2 | 3.5m | 4.5m | 6m |
| Lift capacity | 230 kg | 160 kg | |
| Lift capacity on extension | 115 kg | ||
| Platform size | 0.9×0.75m | ||
| Platform size- extended | 1.50×0.75m | ||
| Stowed size E*F*D | 1.40×0.8×1.6 m | 1.40×0.8×2 m | |
| Overall length-extension J | 1.9m | ||
| Ground clearance | 0.06m | ||
| Min. turning radius-(inside) | 0 | ||
| Min. turning radius-(Outside) | 1.42m | ||
| Raising/lowering time | 20/18s | 24/21s | |
| Driving speed-stowed | 4.0km/h | ||
| Driving speed-raised | 0.8km/h | ||
| Gradeability | 30% | ||
| Control | Electrica hydraulic control | ||
| Hydraulic tank capacity | 8.5L | ||
| Tire | Non-marking 250×80×200mm | ||
| Power source | DC24V/225Ah | ||
| Weight | 716 kg | 1015 kg | 1110 kg |
