Pipe Cutting & Beveling System for Pipe Spool Prefabrication

Request a Quote

View All: http://pipemachinechina.com/12-5-pipe-cutting-beveling-system.html

Pipe fabrication equipment for cutting and beveling pipes to fit the design specifications

The intelligent pipe cutting and beveling system is designed for smart transformation and optimization of pipe cutting and beveling processes.

Model: PSEBS-24Aa

The intelligent pipe cutting and beveling system consists of:

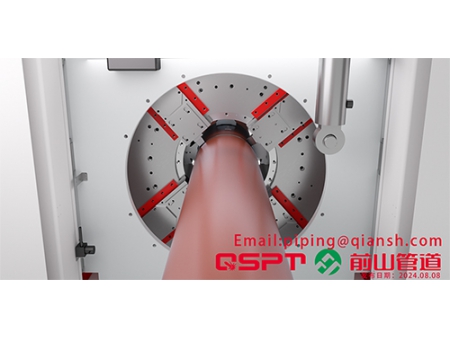

CNC pipe end beveling machine
Roller lifting and conveying system
PLC motion control system (S1500)
QR-code data collector

Applicable Production Line

Semi-intelligent pipe prefabricated production line which is designed with intelligent/QR code scanning to recall the stored program

Applicable Pipe Bevel

V-shaped, U-shaped, VV-shaped, VU-shaped, etc

Applicable Process

Straight pipe longitudinal roller conveyor, clamping of straight pipes using left and right pincers, code scanning, data reading and program recalling, CNC beveling of straight pipe end faces.

Applicable Range

DN100-600 (diameter) × 5-60mm (wall thickness)

Features

High efficiency. The intelligent cutting and beveling system enhances processing quality and efficiency by integrating a high-precision control system with efficient equipment. This reduces manual operations, material waste, and rework, leading to lower production costs.
High safety. Enclosed machine tool covers and safety doors effectively isolate hazardous elements like metal shavings and coolant spray, improving machining process safety.
High productivity. Intelligent management and optimized functions provide real-time monitoring and data analysis of the machining process, streamlining production management.
