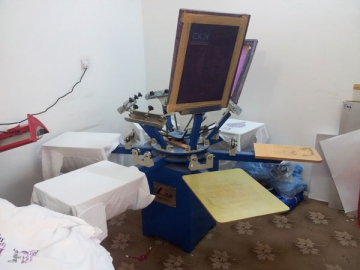

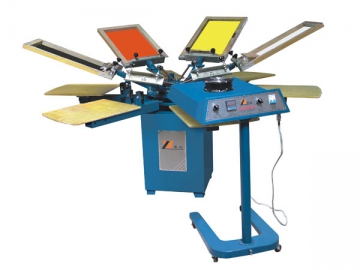

Manual Textile Screen Printing Machine
Registration and Off-contact System
1. U-slot guide locator system;
2. A wide range of off-contact adjustment for there is a precise four-point pallet height adjustment system;
3. Exact color-to-color repeatability for print head lock-in design.
Screen Clamps and Holders
1. A low profile and release height adjustable arms are built, so it can reduce operators fatigue and downtime.
2. The printing machine has 3 large-size knobs which can secure the frame tightly.
3. They are suitable in a variety of frame sizes.
4. High print speed is ensured by two-spring hinge system.
Pallet System
1. It is made of special resin, so the pallets have a durable and effective print surface;
2. All types of pallets adhesives are applicable;
3. It is easy to be installed and it features with left and right adjustable function etc.
Heavy Duty Construction
1. Easy spinning for the design of tapered roller bearings;
2. High print speed is ensure by duo-deck system;
3. Unique cabinet base support provides absolute stability and a spare space for multi-use;
4. Strong durability and minimum flex.
| Model | SPM450 | SPM650 | SPM850 |
| Print Color | 4 | 6 | 8 |
| Max. Image Area | 400×350/mm | 400×350/mm | 400×350/mm |
| Pallet Size | 500×400/mm | 500×400/mm | 500×400/mm |

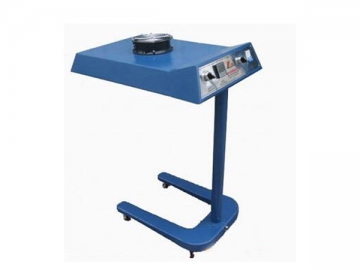

| Each Movable Dryer Power (Kw) | 6 | 6 | 6 |
| Dimension (mm) | 2500×2500×1300 | 2500×2500×1300 | 2800×2800×1350 |
| Weight (Kg) | 190 | 280 | 360 |
