Applications of Flat Screen Printing Machine
SFB-D series flat screen printing machine is applicable in a wide range of packaging industry.

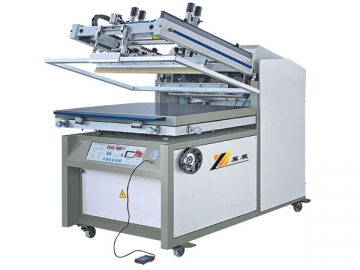

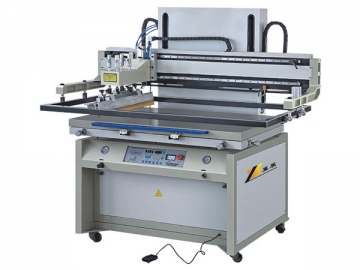

Description of Flat Screen Printing Machine
1. Four-cylinder printing is used, so the printing machine can achieve the effect of pressure on the average printing with clear network lines.
2. It has precise guide "MEGADYNE" belt and can realize inverter-driven printing;
3. High printing precision and stable movement;
4. It is driven by motor, so the printing head movements are straight, fast and smooth.
5. Convenient maintenance of the machine.

Parameters of Flat Screen Printing Machine
Model SFB-D6040 SFB-D9060 SFB-D12080
Max. Printing Size 600×400mm 900×600mm 1200×800mm
Max. Screen Size 950×600mm 1200×800mm 1500×1000mm
Pallet Size 700×500mm 1100×700mm 1300×900mm
Off-contact 0-20mm 0-20mm 0-20mm
Paper Thickness 100-350g/m2 100-350g/m2 100-350g/m2
Printing Motor 1.5Kw 1.5Kw 1.5Kw
Max. Printing Speed 1000s/h 900s/h 800s/h
Weight 550kg 3500kg 4100kg
Total Power 2.45kw 2.8kw 3.9kw
Dimensions 1250×980×1620mm 1620×1190×1680mm 1830×1290×1680mm
