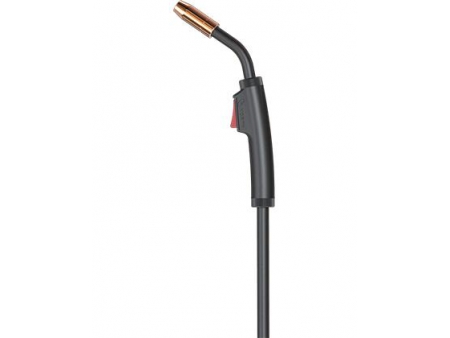

NK126 Self-Shielded Welding Gun
Request a Quote
Technical Data
Rating: DC :350A
Duty Cycle: 60%
Wire Size: 1.0-2.4mm
Model
| Description | Length | Part Number |
| Welding Gun,Liner Non-replacelable | 3M | NK-350-3 |
| Welding Gun c/w Attenuating Switch,Liner Non-replacelable | 3M | NK-350S-3 |
| Welding Gun,Liner replacelable | 3M | NK-350R-3 |
| Welding Gun c/w Attenuating Switch,Liner replacelable | 3M | NK-350RS-3 |
Components
| No. | Part Number | Description |
| 1 | ZN3101 | Thread Protector |
| 2 | ZF3211 | Locking Screw |
| 3 | ZF3212 | Steel insert |
| 4 | ZF3213 | Creamic Insert |
| 5 | ZF32163 | Liner 163mm |
| 5 | ZF32133* | Liner 133mm |
| 6 | ZF3230 | Swan Neck 30° |
| ZF3267 | Swan Neck 67° | |
| ZF3290 | Swan Neck 90° | |
| ZK3001 | Handle Protector | |
| 8 | ZT3001* | Locking Screw |
| 9 | ZT3002 | Socket Head Cap Screw |
| 10 | Q1316 | Ring |
| 11 | ZM3001 | Clamp |
| 12 | ZH3011 | Spatter Shield |
| 13 | ZH3101 | Handle |
| 14 | ZJ3014 | Switch Housing |
| 15 | Q712 | Switch,Omron,Waterproof |
| 16 | ZJ3015 | Switch Assembly W/Plug |
| 17 | ZJ3001 | Trigger Housing Assembly |
| 18 | ZJ3011 | Trigger |
| 19 | Q723 | Botton Switch |
| 20 | ZJ3013 | Attenuating Switch |
| 21 | ZL3130 | Cable Assembly 4m |
| ZL3230 | Cable Assembly 4m | |
| 22 | LV0002* | 2Pin Plug (LN-7,8,9,25) |
| 23 | ZV0005 | 5Pin Plug (LN-7,8,9,25) |
| ZV3003 | 3Pin Plug (LN-22,23) | |
| 24 | ZV3004 | 4Pin Plug |
| 25 | ZV3001 | Lincoln Fitting |
| 26 | ZH3201 | Insulator Sleeve W/Spring |
